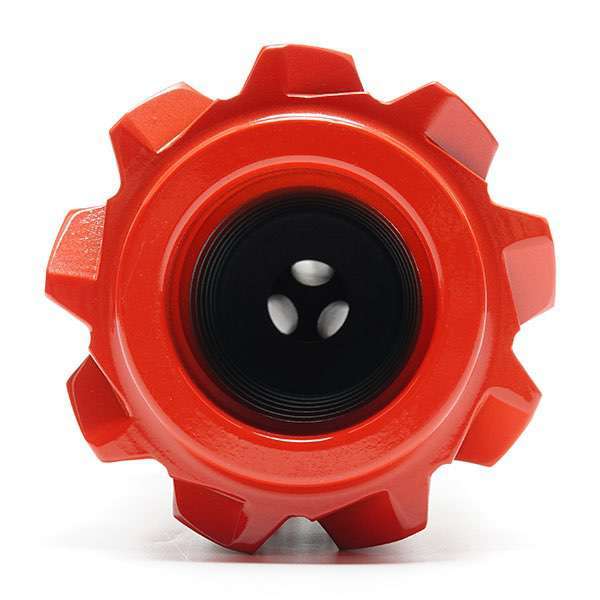

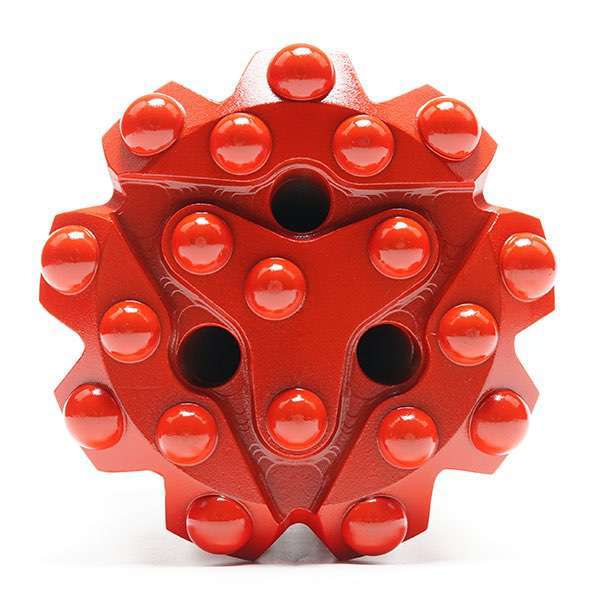

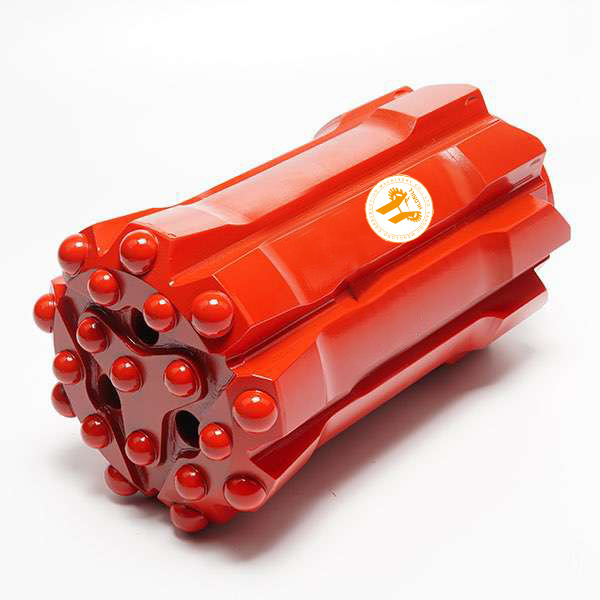

127mm GT60 retrac button bit

Product name:Q14-127-GT60 retrac button bit
Code No.:1531-140GT60-1014/916-45-31
Thread:GT60
Diameter:127mm
Carbide tungsten:10*14mm,9*14mm
Skirt Design:Retract
Weight:11 kg
Carbide Design:Spherical buttons
Face Design:Flat
Material:Alloy Steel Bar 45CrNiMoV And Tungsten Carbide Tips YK05

Key words：

Top Hammer Tools

Thread Button Bit

Related Products

Message

Product Details

Description

Yanggu Henglong construction machinery Co.,Ltd. can produce various thread button bits,such as R32,T38,T45,T51,ST58,GT60,TWIZ60 etc.

The skirt of the threaded button bit is made of high-quality steel, and the carbide tungsten are made of highly wear-resistant and high-toughness cemented carbide. They are hot-set into the steel through heat treatment to ensure that the drill bit is suitable for extremely hard rock formations and achieves the maximum drilling effect with minimal loss.

Except the 127mm GT60,the head diameter also 92mm-127mm,the skirt can be designed normal and retract,the name as the word description. The retract bit can be easily retracted in application. The carbide tungsten can choose spherical type,parabolic type,conical type and ballistic type.The different application and different construction environments use different type.For example The spherical type suitable hard rock,need Wear-resistant.The parabolic type have fast penetration.

Performance

Tight connection, can withstand high torque

Wear-resistant

Suite hard rock

Application

127mm GT60 retrac button bits are widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.

Specification

HENGLONG workshop and Process of manufacturing

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.

Top Hammer Tools

Thread Button Bit

Drill bit	Bit diameter		No.×button diameter			Flushing hole		Weight approx kg	HENGLONG PN
Drill bit	mm	inch	Center	Gauge	Angle	Front	Side	Weight approx kg	HENGLONG PN
Button bit	Spherical buttons
	92	3 5/8"	4x13,1x13	8x13	35°	4	1	5.30	1432-92GT60-513/813-45-31
	96	3 3/4"	4x13,1x13	8x14	35°	4	-	5.60	1432-96GT60-513/814-45-31
	102	4"	9×11	9×13	35°	3	2	6.00	1431-102GT60-911/913-45-31
	115	4 1/2"	10×12	9×14	35°	3	1	6.80	1431-115GT60-1012/914-45-31
	127	5"	10×13	9×14	35°	3	-	7.50	1431-127GT60-1013/914-45-31
	140	5 1/2"	10×14	9×16	35°	3	2	9.00	1431-140GT60-1014/916-45-31
	152	6"	12×14	9×16	35°	3	-	10.60	1431-152GT60-1214/916-45-31
	Parabolic buttons
	92	3 5/8"	4x13,1x13	8x13	35°	4	1	5.30	1432-92GT60-513/813-45-51
	96	3 3/4"	4x13,1x13	8x14	35°	4	-	5.60	1432-96GT60-513/814-45-51
	102	4"	9×11	9×13	35°	3	2	6.00	1431-102GT60-911/913-45-51
	115	4 1/2"	10×12	9×14	35°	3	1	6.80	1431-115GT60-1012/914-45-51
	127	5"	10×13	9×14	35°	3	-	7.50	1431-127GT60-1013/914-45-51
	140	5 1/2"	10×14	9×16	35°	3	2	9.00	1431-140GT60-1014/916-45-51
	152	6"	12×14	9×16	35°	3	-	10.60	1431-152GT60-1214/916-45-51
retrac button bit	Spherical buttons
	92	3 5/8"	9×12	9×12	40°	2	1	5.40	1531-92GT60-912/912-45-31
	96	3 3/4"	9×12	9×12	40°	2	-	6.30	1531-96GT60-912/912-45-31
	102	4"	10×12	9×13	40°	2	2	7.30	1531-102GT60-1012/913-45-31
	115	4 1/2"	10×12	9×14	35°	3	-	9.80	1531-115GT60-1012/914-45-31
	127	5"	10×13	9×14	35°	3	3	12.00	1531-127GT60-1013/914-45-31
	140	5 1/2"	10×14	9×16	35°	3	-	14.00	1531-140GT60-1014/916-45-31
	152	6"	12×14	9×16	35°	3	1	16.00	1531-152GT60-1214/916-45-31
	Parabolic buttons
	92	3 5/8"	9×12	9×12	40°	2	1	5.40	1531-92GT60-912/912-45-51
	96	3 3/4"	9×12	9×12	40°	2	-	6.30	1531-96GT60-912/912-45-51
	102	4"	10×12	9×13	40°	2	2	7.30	1531-102GT60-1012/913-45-51
	115	4 1/2"	10×12	9×14	40°	3	-	9.80	1531-115GT60-1012/914-45-51
	127	5"	10×13	9×14	35°	3	3	12.00	1531-127GT60-1013/914-45-51
	140	5 1/2"	10×14	9×16	35°	3	-	14.00	1531-140GT60-1014/916-45-51
	152	6"	12×14	9×16	35°	3	1	16.00	1531-152GT60-1214/916-45-51
