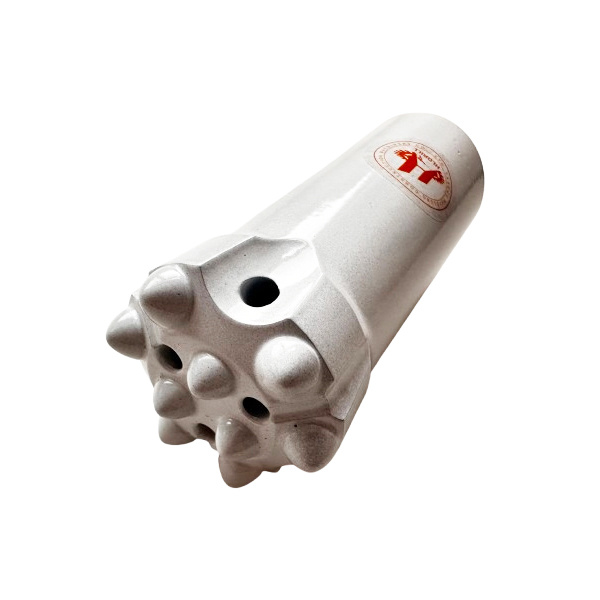

48R32 thread button bit raw materials: Super wear-resistant hard tungsten alloy is used as button, which is impact-resistant, highly wear-resistant and highly thermally stable.
The body of the trousers undergoes secondary enhanced heat treatment, which increases the wear resistance and impact resistance of the trousers by 2 times year-on-year. The matching error between the super-hard tungsten alloy and the trousers is smaller. The advanced head design is conducive to slag removal and heat dissipation.
The button drill bit uses different alloy (hemispherical button, ballistic button, parabolic button, etc.) According to different rock formation structures and hardness. HLDRILL can produce alloy button drill bits of different specifications and forms according to different needs of users.
Performance
Fast drilling speed
Wear resistance and impact resistance
Good slag removal and heat dissipation
Application
Used in drifting and tunneling, dimensional natural stone quarrying
Specification
R32 thread button bit
Drill bit
Bit diameter
No.×button diameter
Flushing hole
Weight approx kg
HENGLONG PN
mm
inch
Center
Gauge
Angle
Front
Side
Button bit
Spherical buttons
45
1 3/4"
3×8
6×9
35°
3
1
0.80
1431-45R32-38/69-45-31
45
1 3/4"
3×8
6×10
35°
3
1
0.81
1431-45R32-38/610-45-31
48
1 7/8"
2×9
5×10
35°
1
2
1.00
1431-48R32-29/510-45-31
48
1 7/8"
3×8
6×10
40°
3
1
0.90
1431-48R32-38/610-45-31
51
2"
2×10
5×11
35°
1
2
1.00
1431-51R32-210/511-45-31
51
2"
3×9
6×10
35°
3
2
1.00
1431-51R32-39/610-45-31
57
2 1/4"
3×9
6×11
35°
3
2
1.30
1431-57R32-39/611-45-31
64
2 1/2"
3×11
6×12
30°
3
1
1.60
1431-64R32-311/612-45-31
64
2 1/2"
4×10
8×10
40°
2
1
1.60
1431-64R32-410/810-45-31
76
3"
4×11
8×11
35°
2
1
2.60
1431-76R32-411/811-45-31
Parabolic buttons
45
1 3/4"
3×8
6×9
35°
3
1
0.80
1431-45R32-38/69-45-51
45
1 3/4"
3×8
6×10
35°
3
1
0.81
1431-45R32-38/610-45-51
48
1 7/8"
2×9
5×10
35°
1
2
1.00
1431-48R32-29/510-45-51
48
1 7/8"
3×8
6×10
40°
3
1
0.90
1431-48R32-38/610-45-51
51
2"
2×10
5×11
35°
1
2
1.00
1431-51R32-210/511-45-51
51
2"
3×9
6×10
35°
3
2
1.00
1431-51R32-39/610-45-51
57
2 1/4"
3×9
6×11
35°
3
2
1.30
1431-57R32-39/611-45-51
64
2 1/2"
3×11
6×12
30°
3
1
1.60
1431-64R32-311/612-45-51
64
2 1/2"
4×10
8×10
40°
2
1
1.60
1431-64R32-410/810-45-51
76
3"
4×11
8×11
35°
2
1
2.60
1431-76R32-411/811-45-31
Retrac button bit
Spherical buttons
51
2"
3×9
6×10
35°
3
-
1.40
1531-51R32-39/610-45-31
54
2 1/4"
3×9
6×10
35°
3
-
2.20
1533-54R32-39/610-45-31
64
2 1/2"
4×10
8×10
40°
2
-
2.20
1531-64R32-410/810-45-31
76
3"
4×11,1×11
8×11
35°
4
1
3.50
1533-76R32-511/811-45-31
Parabolic buttons
51
2"
3×9
6×10
35°
3
-
1.40
1531-51R32-39/610-45-51
54
2 1/4"
3×9
6×10
35°
3
-
2.20
1533-54R32-39/610-45-51
64
2 1/2"
4×10
8×10
40°
2
-
2.20
1531-64R32-410/810-45-51
76
3"
4×11,1×11
8×11
35°
4
1
3.50
1533-76R32-511/811-45-51
Dome bit for reaming
Spherical buttons
76
3"
1×13
9×13
35°
3
1
2.00
1441-76R32-113/913-45-31
89
3 1/2"
1×13
14×13
35°
2
2
2.60
1441-89R32-113/1413-45-31
102
4"
1×13
16×13
35°
2
2
3.20
1441-102R32-113/1613-45-31
127
5"
1×13
18×13
35°
3
1
4.80
1441-127R32-113/1813-45-31
Parabolic buttons
76
3"
1×13
9×13
35°
3
1
2.00
1441-76R32-113/913-45-51
89
3 1/2"
1×13
14×13
35°
2
2
2.60
1441-89R32-113/1413-45-51
102
4"
1×13
16×13
35°
2
2
3.20
1441-102R32-113/1613-45-51
127
5"
1×13
18×13
35°
3
1
4.80
1441-127R32-113/1813-45-511
Drill bit
Bit diameter
No.×button diameter
Flushing hole
Weight approx kg
HENGLONG PN
mm
inch
Center
Gauge
Angle
Front
Side
Reaming bit 6°
64
2 1/2"
4×8
8×9
25°
-
-
0.80
1441-646-48/89-45-31
76
3"
2×11
8×11
35°
-
-
1.20
1441-766-211/811-45-31
76
3"
4×10
8×10
30°
-
-
1.20
1441-766-410/810-45-31
89
3 1/2"
4×11
8×11
35°
-
-
1.70
1441-896-411/811-45-31
Pilot adapter 6°
26
1 1/32"
12X8
-
-
-
-
1.50
1442-26R32-12/8-42-22
32
1 1/4"
12×8
-
-
-
-
1.50
1442-32R32-12/8-42-22
40
1 9/16"
16×10
-
-
-
-
1.80
1442-40R32-16/10-42-22
Reaming bit 12°
89
3 1/2"
4×10
8×12
35°
-
-
1.80
1441-8912-410/812-45-31
102
4"
4×12
8×12
35°
-
-
2.10
1441-10212-412/812-45-31
127
5"
4×12
8×12
35°
-
-
4.00
1441-12712-412/812-45-31
Pilot adapter 12°
40
1 9/16"
16×10
-
-
-
2.20
1442-40R32-16/10-42-22
45
1 3/4"
18×10
-
-
-
2.30
1442-45R32-18/10-42-22
Cross bits
45
1 3/4"
8×14
-
1
4
0.90
1221-45R32-8/14-42-23
48
1 7/8"
8×14
-
1
4
0.90
1221-48R32-8/14-42-23
51
2"
8×14
-
1
4
1.20
1221-51R32-8/14-42-23
57
2 1/4"
8×14
-
1
4
1.30
1221-57R32-8/14-42-23
64
2 1/2"
16×10
-
1
4
1.50
1221-64R32-16/10-42-23
