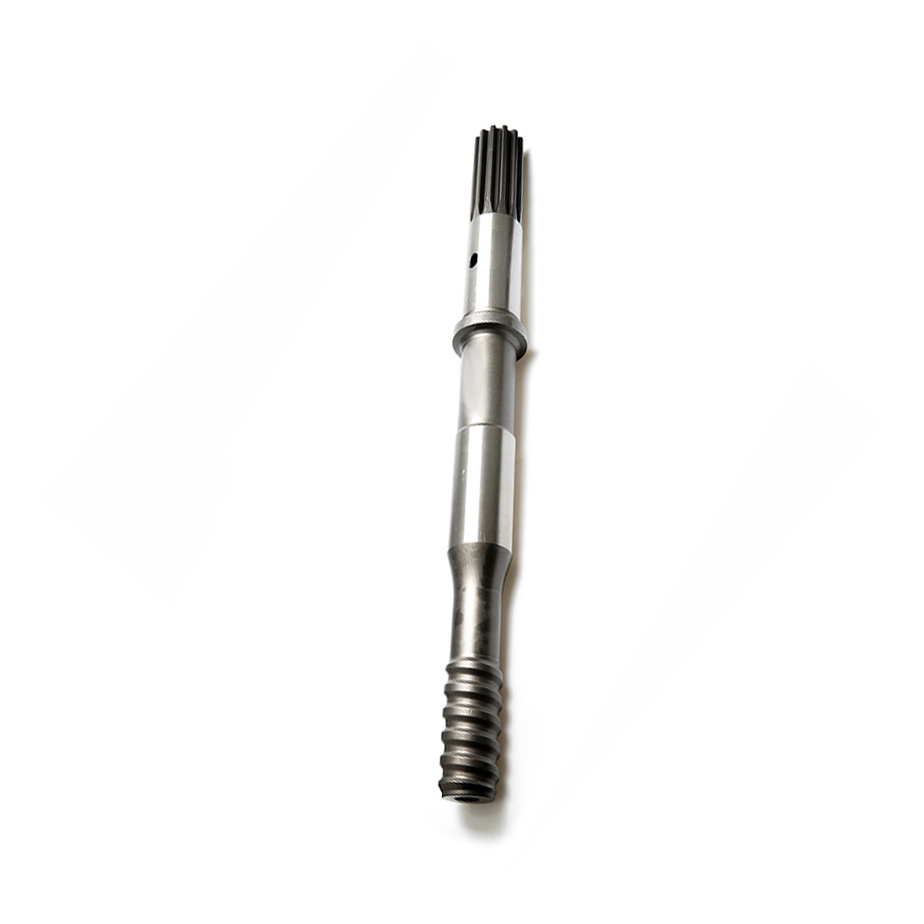

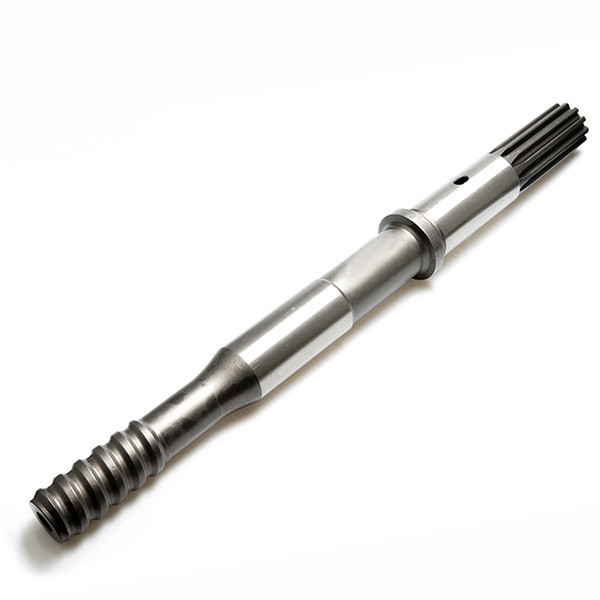

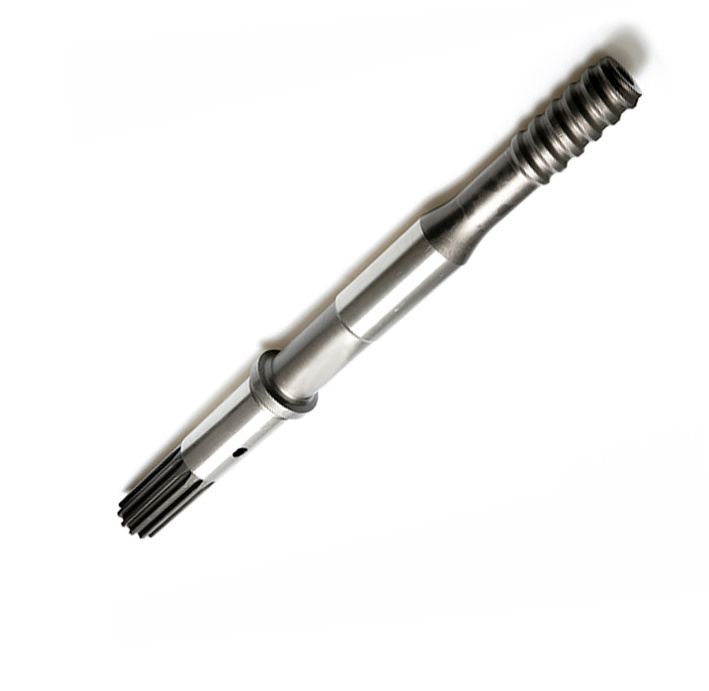

Atlas COP2160EX-T51-D63-L770 Shank Adapter

Atlas COP2160EX-T51-D63-L770 Shank Adapter

Length:770mm
Thread Type: T51
Dia.63mm Weight: 13.3Kg
Rock Drill Type:COP2160EX

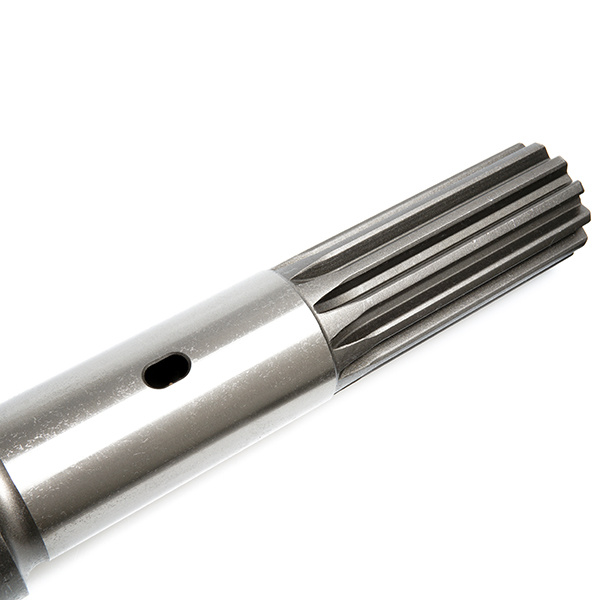

Spline Dia.:62mm
Spline dimension:6.8mm
Spline Length：134mm
Spline Type:standard
Material:23CrNi3Mo

Key words：

Shank Adapter

Related Products

Message

Product Details

Description：

The function of the shank adapter is to directly bear the impact energy and torque of the rock drill.

The specification and hardness of the shank adapter have a great impact on the drilling speed, rock drill and drill life. Therefore, the shank adapter should be of appropriate length, with a flat and smooth end face, a cross section perpendicular to the axis, and consistent with the drill sleeve of the rock drill (the gap should not be greater than 0.5mm). The hardness of the shank adapter should be appropriate. If the shank adapter is too soft, the service life will be short. If it is too hard, the piston will be easily injured. Generally, the hardness of the shank adapter should be slightly lower than the piston hardness. The quenching hardness HRC=38~45 is appropriate.

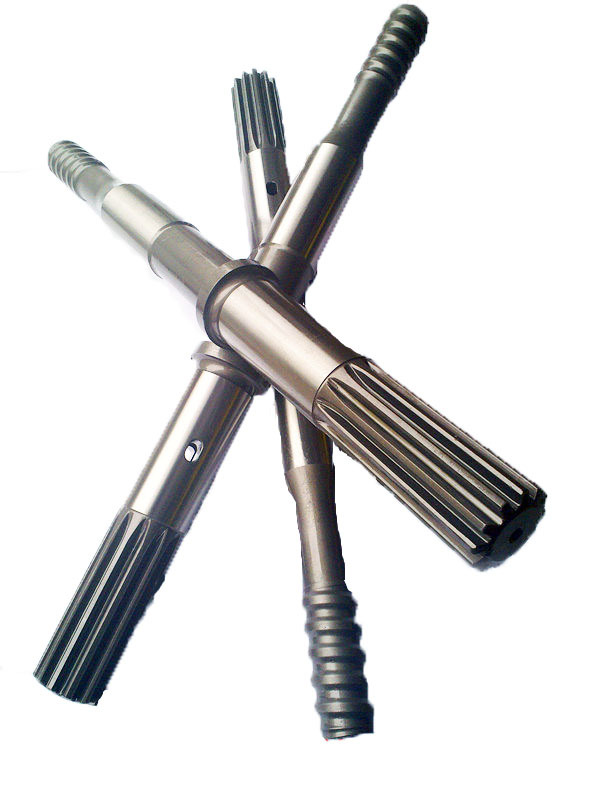

Due to the drilling environment, the hole depth and size requirements are different, and there are various rock drill specifications and brands,there are many type of shank adapter, except for the Atlas COP2160EX-T51-D63-L770 shank.Henglong factory can produces more than 300 types of shank adapter.

Performance：

The main advantages of HNEGLONG COP2160EX-T51-D63-L770 Shank Adapter are as follows, which is also why we recommend you to use our drilling tools.

1.The shank adapter is mainly used in mining operations. It uses high-quality alloy steel as raw material and undergoes overall carburizing treatment.

2.Special CNC machine tool processing equipment and processing processes are used to ensure the processing quality of tail details, internal water holes and side water holes. 3.The shank adapter has been uniformly heat treated and scientifically straightened using precision instruments to ensure that the shank adapter is straight and anti-friction.

Applications:

COP2160EX-T51-D63-L770 Shank Adapters are mainly used for bench drilling.

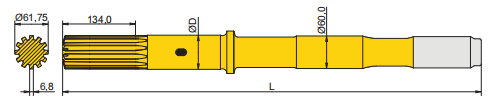

Specification:

HENGLONG workshop and Process of manufacturing

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.

Shank Adapter

Epiroc：COP2160EX, COP2560EX and + version	Thread	Diameter	Length(mm)	Weight(Kg)	Flushing (mm)	HENGLONG P/N
	T45 (1¾")	63	770	13.2	-	4COP2160-63T45 -0770-23
	T51 (2")	63	770	13.3	-	4COP2160-63T51 -0770-23
