Blast Furnace Tapping Hole Tools

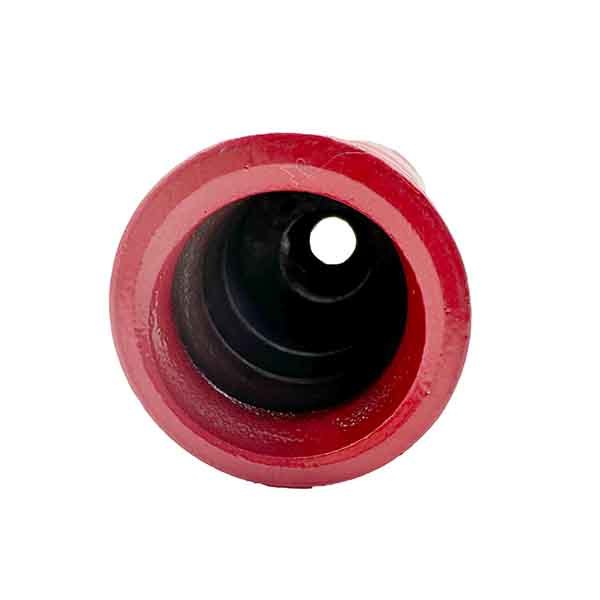

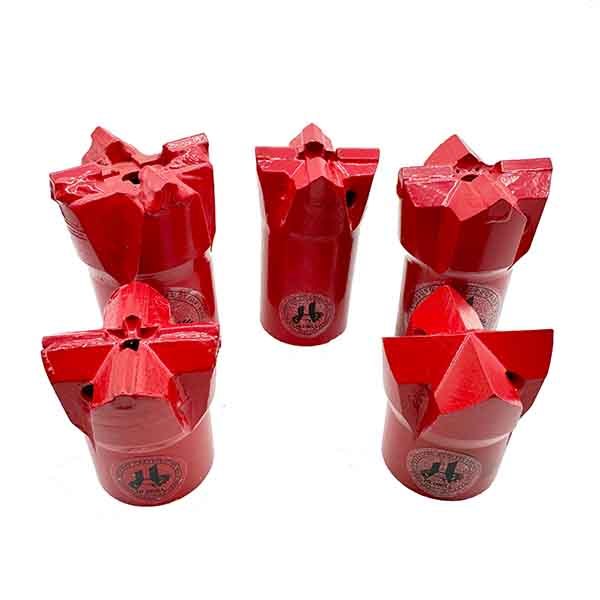

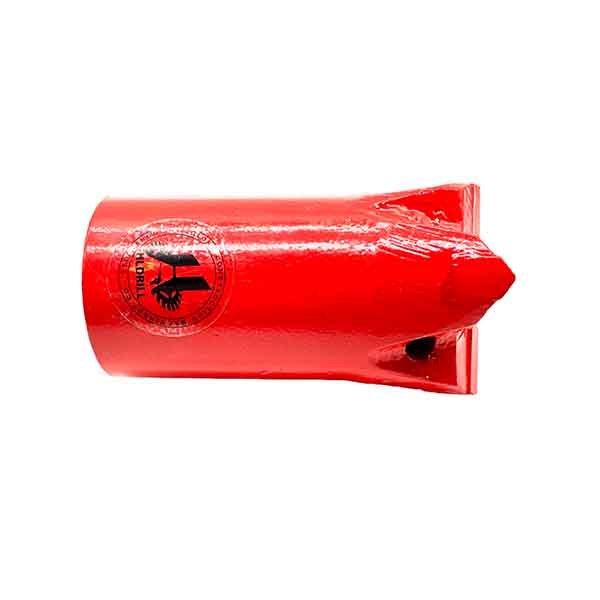

Product name:R32-45 Threaded Cross Bit
Code No.:1221-45R32-16/10-42-23
Diameter:45mm
Thread Type:R32
Length:80mm
Carbide Dimension:16mm×10mm
Weight:0.5kg
Water Holes: 1 on front,2 on side
Skirt Design: Standard/Normal
Carbide Brand and Grade :YK15.6, YK20,YG8C,YG9C,YG10C,YG11C
Steel grade :42CrMo,40Cr,Q26(35CrNiMoVA)

Key words：

Furnace Tapping Tools

Related Products

Message

Product Details

Description

HENGLONG has produced high-quality professional blast furnace tapping hole tools on the basis of years of profound theoretical research and production of blast furnace drilling tools. The products include furnace tapping drill bit, furnace tapping coupling,furnace tapping rod. It is the manufacturer of blast furnace tapping hole tools designated by the world's major large iron and steel enterprises, and has formed a long-term good cooperative relationship with it. And according to the requirements of foreign customers, we can produce a variety of blast furnace drilling tools for foreign iron and steel enterprises.
Blast furnace tapping hole bits include button bit and cross bit with soft tap hole clay and no inclusion of slag or iron.Threaded Drill rods with threaded the whole steel drill bits，The drill bit makes a clean hole with a constant diameter from beginning to end. The bit is made from wear resistant cast steel and interchangeable with different drill rods.we can offer R32, R38,T38 Thread tap drill bits from 32mm-152mm,coupling,adaptor and Rod etc.
TAISHAN ROCK TOOLS can offer H25, R28.5,R32,B32,T38 Thread tap drill bits from 32mm-152mm,coupling,adaptor and Rod etc.

Performance

One of the most important features of our blast furnace tapping hole tools is to open tapholes cleanly, efficiently and economically. We are also constantly developing the operability of the tools to ensure safe and quick tool changes during operation.

Application

Blast Furnace Tapping Hole Tools are main used for the Blast Furnace and Ferro-Alloy Applications

Specification

Name of product

Diamete

Tip size(mm)

Thread

Weight
approx
kg

P/N

inch

H×W

Cross-type bit

100

13/4

131/32

21/8

23/8

21/2

23/4

31/8

33/4

7×8

R32

R38

T38

R32

R38

T38

R32

R38

T38

R32

T38

R32

0.5

0.6

0.7

1.0

0.7

1.2

1.3

0.9

1.3

1.4

1.3

1.5

1.7

1.8

1222-45R32-7/8-40-24

1222-50R32-7/8-40-24

1222-55R32-7/8-40-24

1222-55R38-7/8-40-24

1222-55T38-7/8-40-24

1222-60R32-7/8-40-24

1222-60R38-7/8-40-24

1222-60T38-7/8-40-24

1222-65R32-7/8-40-24

1222-65R38-7/8-40-24

1222-65T38-7/8-40-24

1222-70R32-7/8-40-24

1222-70T38-7/8-40-24

1222-80R32-7/8-40-24

1222-100R32-7/8-40-24

Button bit

17/8

21/8

21/4

6×10

6×11

R32

0.6

0.7

0.8

1431-48R32-6/10-42-53

1431-51R32-6/10-42-53

1431-54R32-6/11-42-53

1431-57R32-6/11-42-53

Name of product

Length

Weight
(kg)

P/N

Foot

R38-Round39-R32

2800

3400

3600

4100

4300

9'2"

11'2*

11'9*

13'5"

14'1*

22.7

27.8

29.4

34.5

35.3

25R39-R32/R38-2800-40

25R39-R32/R38-3400-40

25R39-R32/R38-3600-40

25R39-R32/R38-4100-40

25R39-R32/R38-4300-40

T38-Round39-T38

3000

3200

4000

9'8"

10'5"

13°1*

24.9

26.5

33.4

25R39-T38-3000-40

25R39-T38-3200-40

25R39-T38-4000-40

HENGLONG workshop and Process of manufacturing

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
