Description

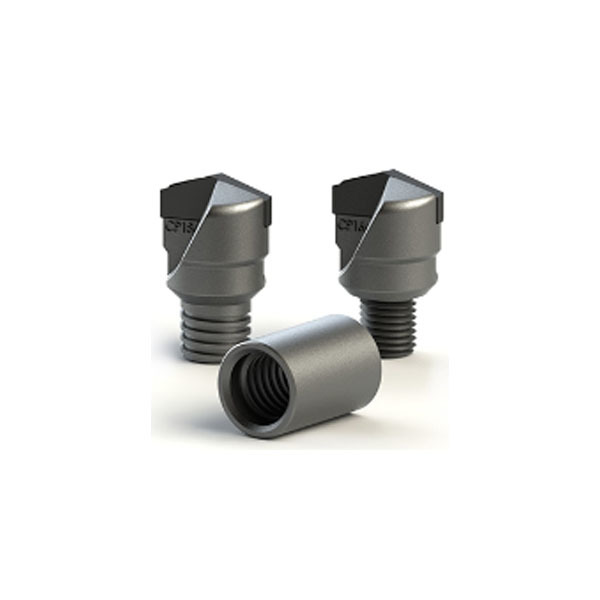

Comes equipped witha CP18 pilot tool. Drills blast holes and water wells nearly twice as fast as standard cutting tools, particularly in unconsolidated ground and soft to medium-hard rock. Produces larger chips and less dust, with less gage down pressure.Strategically located air holes evacuate the cuttings. All of this means more production, less downtime,and a greatly reduced total cost.
Our claw system is actually several cutting tools in one! One of four pilot tools: a CP15 for 4 1/2"-and 4 3/4"-diameter systems; a CP17 for 4 1/2"-and 4 3/4"-diameter systems; a CP16 for 5"- to 5 1/2"-diameter e systems; or a CP18 for 6"-diameter and larger systems,with a CP18 pilot chuck...plus a number (depending upon the diameter of the hole you want to drill) of our self-sharpening, carbide-tipped C23 conicals. All cutting tools are easy to install and, when necessary, a snap to change.
Performance
Selected Best Cutting Tungsten Carbide Tips
Optimum Hardness & Toughness Tool Body
High Brazing Strength
Rigorous Product Consistency Quality Control
Application
CP18 claw pilot bits are used with rotary drilling rig
Specification
| Product | Bit type | Diameter | Total length | Thread | Weight | ||
| inch | mm | inch | mm | ||||
| KFP15 |  | 2 | 51 | 3.82 | 97 | M36 | 0.87 |

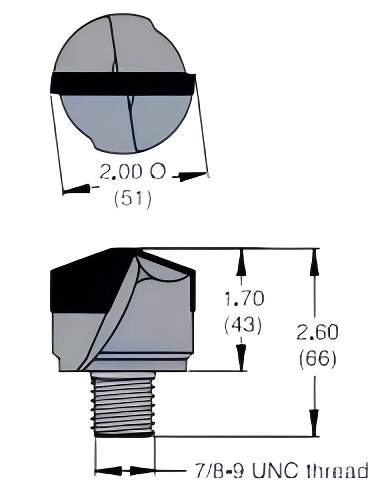

| CP15 |  | 2 | 51 | 2.6 | 66 | 7/8-9UNC | 0.49 |
| CP16 |  | 2 | 51 | 3.31 | 84 | 1-8UNC | 0.65 |

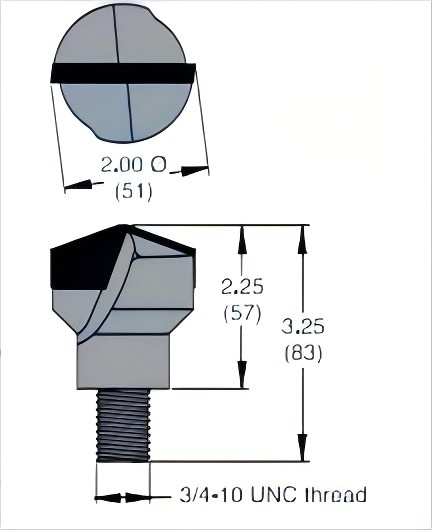

| CP17 |  | 2 | 51 | 3.25 | 83 | 3/4-10UNC | 0.71 |
| CP18 |  | 2 | 50.8 | 3.31 | 83.9 | 1 1/4-5 Stube acme thread | 0.71 |
| CP18 holder |  | 1.5 | 38.1 | 2.5 | 63.5 | - | 0.4 |
