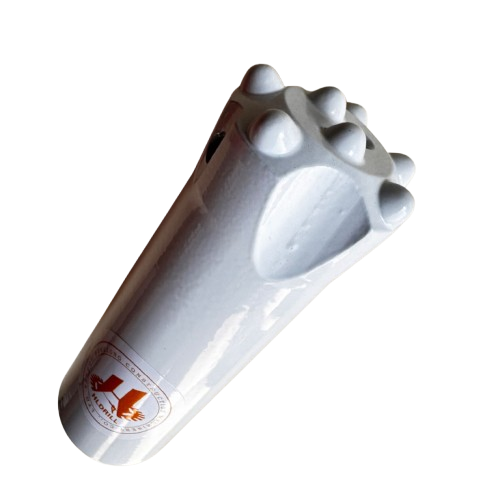

Drifting and tunneling 35R25 thread button bit

Drill bit

Bit diameter

No.×button diameter

Flushing hole

Weight
approx kg

HENGLONG PN

mm

inch

Center

Gauge

Angle

Front

Side

Button bit

Spherical buttons

33

1 19/64"

2×7

5×7

35°

1

2

0.33

1431-33R25-27/57-45-31

35

1 3/8"

2×7

5×8

35°

1

1

0.39

1431-35R25-27/58-45-31

38

1 1/2"

2×7

5×8

30°

1

1

0.52

1431-38R25-27/58-45-31

38

1 1/2"

2×7

5×9

30°

1

1

0.52

1431-38R25-27/59-45-31

41

1 5/8"

2×9

4×9

35°

1

2

0.58

1431-41R25-29/49-45-31

41

1 5/8"

2×8

5×9

35°

1

1

0.58

1431-41R25-28/59-45-31

43

1 11/16"

2×9

4×10

35°

1

2

0.65

1431-43R25-29/410-45-31

45

1 3/4"

2×8

5×9

30°

1

2

0.68

1431-45R25-28/59-45-31

45

1 3/4"

3×8

6×9

30°

3

2

0.68

1431-45R25-38/69-45-31

Parabolic buttons

33

1 19/64"

2×7

5×7

35°

1

2

0.33

1431-33R25-27/57-45-51

35

1 3/8"

2×7

5×8

35°

1

1

0.39

1431-35R25-27/58-45-51

38

1 1/2"

2×7

5×8

30°

1

1

0.52

1431-38R25-27/58-45-51

38

1 1/2"

2×7

5×9

30°

1

1

0.52

1431-38R25-27/59-45-51

41

1 5/8"

2×9

4×9

35°

1

2

0.58

1431-41R25-29/49-45-51

41

1 5/8"

2×8

5×9

35°

1

1

0.58

1431-41R25-28/59-45-51

43

1 11/16"

2×9

4×10

35°

1

2

0.65

1431-43R25-29/410-45-51

45

1 3/4"

2×8

5×9

30°

1

2

0.68

1431-45R25-28/59-45-51

45

1 3/4"

3×8

6×9

30°

3

2

0.68

1431-45R25-38/69-45-51

Reaming bit 12°

64

2 1/2"

2×9

8×10

35°

-

-

0.88

1441-6412-29/810-45-41

64

2 1/2"

4×9

8×9

25°

-

-

0.88

1441-6412-49/89-45-41

76

3"

2×11

8×11

35°

-

-

1.20

1441-7612-211/811-45-41

76

3"

4×10

8×10

30°

-

-

1.20

1441-7612-410/810-45-41

Pilot adapter 12°

26

1 1/32"

10×7

-

-

-

1.30

1442-26R25-10/7-42-22

32

1 1/4"

11×7

-

-

-

1.50

1442-32R25-11/7-42-22

Cross bit

33

1 19/64"

11×7

-

1

4

0.42

1221-33R25-11/7-42-22

35

1 3/8"

12×8

-

1

4

0.52

1221-35R25-12/8-42-22

38

1 1/2"

12×8

-

1

4

0.62

1221-38R25-12/8-42-22

41

1 5/8"

12×8

-

1

4

0.72

1221-41R25-12/8-42-22

43

1 11/16"

12×8

-

1

4

0.72

1221-43R25-12/8-42-22

45

1 3/4"

14×8

-

1

2

0.82

1221-45R25-14/8-42-22

51

2"

14×8

-

1

4

1.12

1221-51R25-14/8-42-22

Drill rod R25

Length

Diameter

Weight
approx kg

HENGLONG PN

mm

foot

mm

inch

Drifter rod,R32-Hex25-R25 Flushing hole 8.6mm
Full carburization

1830

6'

25

1"

8.60

22H25-R25/R32-1830-23

2400

7'10"

25

1"

9.60

22H25-R25/R32-2400-23

2600

8'6"

25

1"

10.40

22H25-R25/R32-2600-23

2800

9'2"

25

1"

11.10

22H25-R25/R32-2800-23

3090

10'1"

25

1"

12.20

22H25-R25/R32-3090-23

3700

12'2"

25

1"

14.60

22H25-R25/R32-3700-23

Drill rod R25

Length

Diameter

Weight
approx kg

HENGLONG PN

mm

foot

mm

inch

Extension rod,R25-Hex25-R25 Flushing hole 8.6mm
Full carburization

915

3'

25

1"

3.40

23H25-R25/R25-0915-23

1000

3'3"

25

1"

4.00

23H25-R25/R25-1000-23

1220

4'

25

1"

4.60

23H25-R25/R25-1220-23

1525

5'

25

1"

5.80

23H25-R25/R25-1525-23

1830

6'

25

1"

7.00

23H25-R25/R25-1830-23

2435

8'

25

1"

9.30

23H25-R25/R25-2435-23

3090

10'1"

25

1"

12.00

23H25-R25/R25-3090-23

Speedrod,R25-Hex25-R25
Flushing hole 8.6mm
Full carburization

610

2'

25

1"

2.70

24H25-R25/35-0610-23

1220

4'

25

1"

5.10

24H25-R25/35-1220-23

1830

6'

25

1"

7.00

24H25-R25/35-1830-23

2435

8'

25

1"

9.30

24H25-R25/35-2435-23

3090

10'1"

25

1"

12.00

24H25-R25/35-3090-23

R25 Shank end rod

Length

Diameter

Weight
approx kg

HENGLONG PN

mm

foot

mm

inch

H22*108 shank end rod
Steel grade:Z708

Shank 22mm×108mm

255

10"

22

7/8"

1.20

21H22-R25/108-0255-40

610

2'

22

7/8"

2.50

21H22-R25/108-0610-40

760

2'6"

22

7/8"

2.75

21H22-R25/108-0760-40

1000

3'3"

22

7/8"

3.50

21H22-R25/108-1000-40

1200

3'11"

22

7/8"

4.25

21H22-R25/108-1200-40

1830

6'

22

7/8"

6.15

21H22-R25/108-1830-40

H25*108 shank end rod
Steel grade:Z708

Shank 25mm×108mm

255

10"

25

1"

1.50

21H25-R25/108-0255-40

610

2'

25

1"

2.95

21H25-R25/108-0610-40

1200

3'11"

25

1"

5.45

21H25-R25/108-1200-40

1830

6'

25

1"

7.95

21H25-R25/108-1830-40

2435

8'

25

1"

10.35

21H25-R25/108-2435-40

Coupling

Length

Diameter

Thread

Weight
approx kg

HENGLONG PN

mm

inch

mm

inch

Coupling sleeves
Full carburization

140

5 1/2"

33

1 1/4"

R25

0.53

31-R25-33-140-23

150

5 7/8"

35

1 3/8"

R25

0.73

31-R25-35-150-23

Crossover coupling
Full carburization

140

5 1/2"

45

1 3/4"

R25-R32

1.20

33-R25/R32-45-140-23

150

5 7/8"

45

1 3/4"

R25-R32

1.30

33-R25/R32-45-150-23

170

6 5/8"

55

2 5/32"

R25-R38

1.70

33-R25/R38-55-170-23

170

6 5/8"

55

2 5/32"

R25-T38

1.80

33-R25/T38-55-170-23
