ESSF Bits Of Self -Drilling Anchor Bolt

Product name:ESSF bits of Self -Drilling Anchor Bolt
Dia.:200mm
Length:123mm
Button:28*10mm
Outer dia.120mm
Inside dia.:70mm
Weight:14.65kg
Material:42CrMo =EN10083= 4140

Key words：

Rock Bolt

Related Products

Message

Product Details

Description

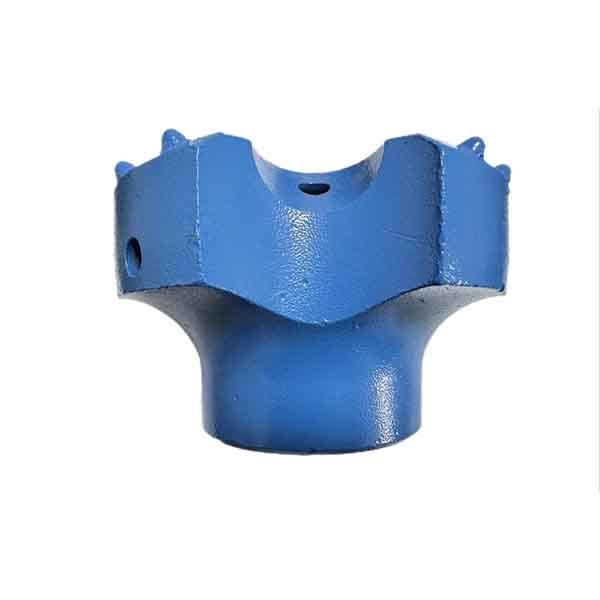

ESSF bits are the main type bits for Self -Drilling Anchor Bolt.ESSF bits are Designed with tungsten carbide.The "button" design of this drill bit makes it excellent for unconsolidated rock with boulders.
The self-drilling hollow anchor system performs drilling, anchoring and grouting in one step. It allows air and water to freely pass through the bar during drilling to remove debris and then allows the grout to be injected immediately after completely covering the entire bolt.

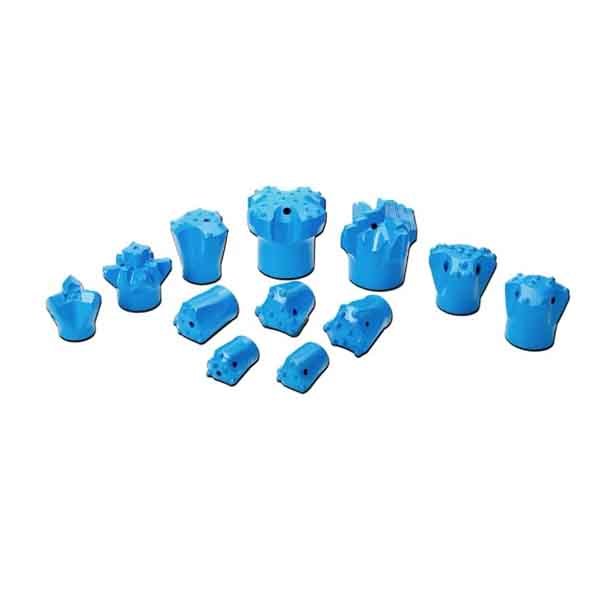

The correct selection of the drill bit dependent on the geological conditions on site is essential to ensuring a productive and cost-effective installation of the hollow bars. Conventional drill bits are designed for longevity. We offer a wide range of drill bits suitable for diverse geological conditions.Drill bit adapters increase flexibility by allowing the use of drill bits designed for other dimensions of hollow bars.The stability of the drill bits enables safe drilling of the borehole down to the required depth Since the drill bit is used for one borehole only (sacrificial drill bit), the service life should meet but not significantly exceed the requirements so as to ensure cost-effectiveness)The type of drill bit used and, in particular, the inserts are dependent on the geological conditions on site,The drill bit diameter is dependent on the design requirements and the specifications defined in the approvals.

HENGLONG workshop and Process of manufacturing

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
