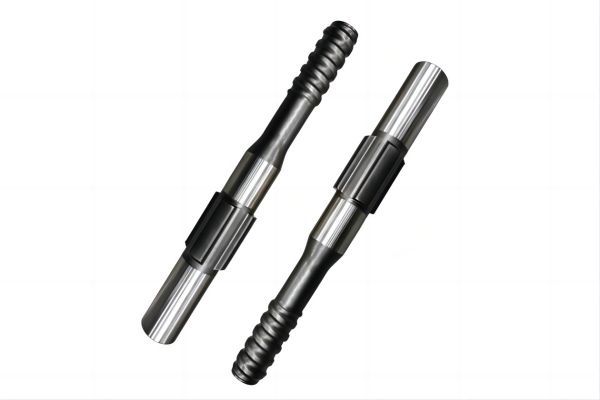

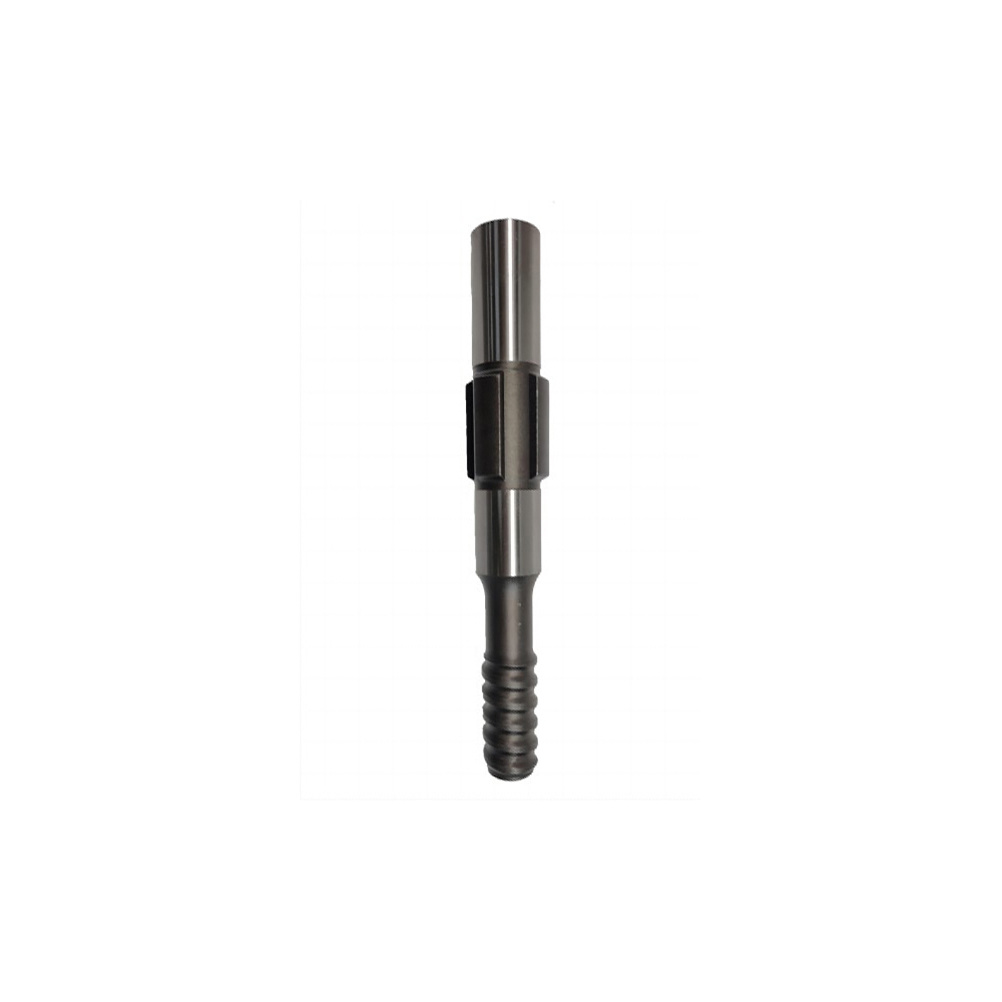

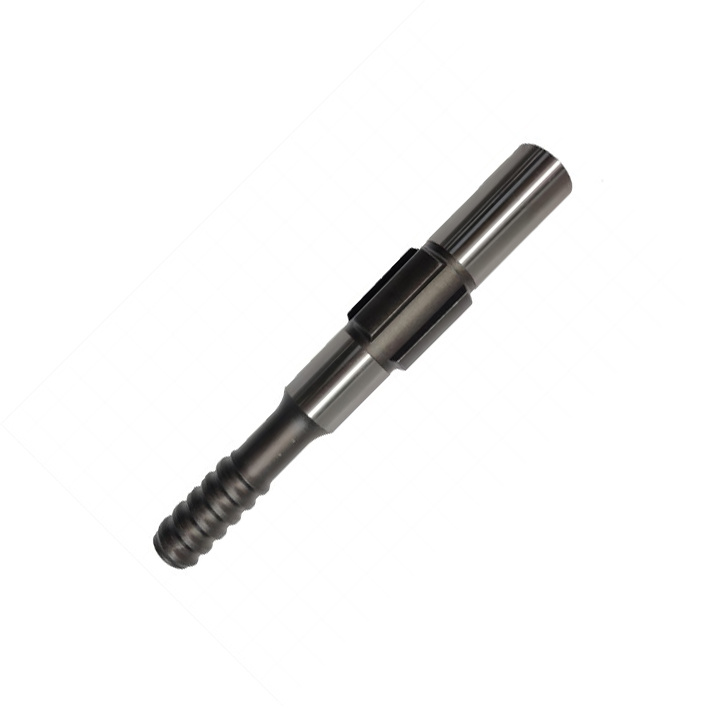

Furukawa PD200/VL140/VL120 T38-380mm Shank adapter

Furukawa PD200/VL140/VL120 T38-380mm Shank adapter

Length:380mm
Thread Type: T38
Dia.44.5mm
Weight: 4.0Kg
Rock Drill Type:Furukawa PD200
Spline Dia.:55.5mm
Spline dimension:6.8mm
Spline Length：64mm
Spline Type:standard
Material:23CrNi3Mo

Key words：

Shank Adapter

Related Products

Message

Product Details

Description：

Top hammer rock drill shank adapter ( striking bar ) are used for transmitting power from the rock drill to the drill stems. Generally there are male threaded shank dapters and femal threaded shank adapters. Male shank adapters are more popular than female shank adapter. Male shank adapters are generally suited for drifting, tunneling and extension applications where high stresses are present. Female shank adapters are used when the drilling space is limited. Top quality of alloy steels, CNC machining and advanced heat threatment ensure our reliable quality.

HENGLONG supplies shank adaptors for most models of current prevailing rock drill machines. All our shank adaptors are carburized, CNC manufactured, and made from premium steel. Thus ensure them with superior toughness andanti-fatigue strength to meet the most demanding drilling conditions. Moreover, all shanks could be produced with ether male or female threads if there is actually necessary.

Performance：

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.

Accurate dimension of thread perfectly matches the rock drill

Work reliable and very cost-effective

Applications

Bolting,drifting

Bench drilling

Production drilling

Specification

HENGLONG workshop and Process of manufacturing

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.

Shank Adapter

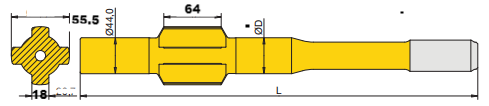

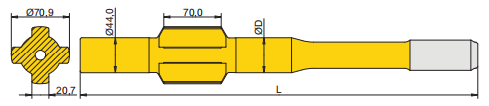

Furukawa:PD200	Thread	Diameter	Length(mm)	Weight(Kg)	Flushing (mm)	HENGLONG P/N
	T38(1½")	44	380	4.2	-	4PD200-44T38-0380-23
	T38(1½")	44	485	5	-	4PD200-44T38-0485-23
	T45 (1¾")	44	485	5.4	-	4PD200-44T45-0485-23
	T38(1½")	44	380	3.5	-	4PD200-44T38-0380-23
	T38(1½")	44	450	3.9	-	4PD200-44T38-0450-23
