Low air pressure DTH hammer

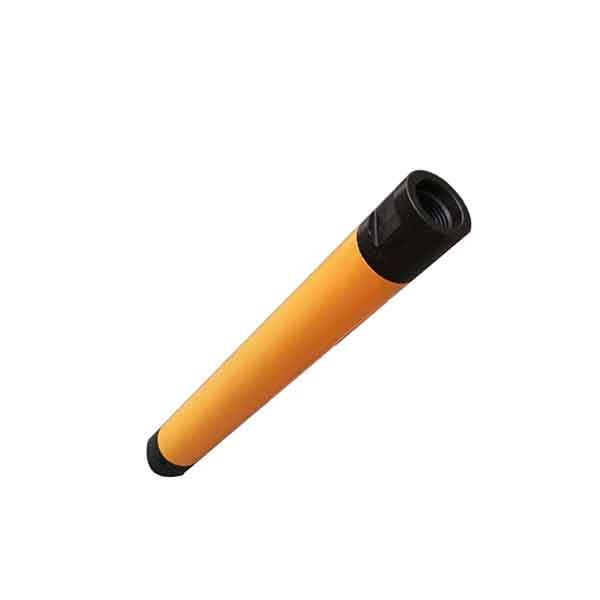

Product name:CIR90 Low air pressure DTH hammer
Hammer Length without bit:855mm
Top sub thread:F48x10PIN
Outside diameter:80(mm)
Weight:：22kg
Bit diameter:90-120(mm)
Working Pressure:5-10(Bar)
Air consumption:7-12(M³/min)

Key words：

DTH hammer tools

Related Products

Message

Product Details

Description

Low air pressure DTH hammer is a kind of impactor with plate valve, single piston and central exhaust structure, which is driven by compressed air. Little amount of high pressure water can be added to the compressed air to prevent dust pollution for getting a better performance .

Performance

The performance of low air pressure DTH hammer
1.Large single impact energy, low energy consumption for rock drilling.
2.Approximate weight ratio of piston and drill bit and long efficient acting time are benefit to increase rock drilling efficiency and prolong the drilling tool service life.
3.Good effect of central exhaust and slag discharge, reducing the repeated crushing of rock.
4.Equip with check-valve assembly, making drilling in water possible.

Applications

Low air pressure DTH hammers are used toUnderground Mining, Water well, Mining, Quarry etc.

Specification

LOW AIR PRESSURE HAMMERS
CIR-50	Product data:

	Hammer Length without bit:			628(mm)
	Top sub thread:			F32x8PIN
	Outside diameter:			44(mm)
	Weight:			5(KG)
	Bit diameter:			50(mm)
	Working Pressure:			4-10(Bar)
	Air consumption:			3-5(M³/min)
	Bit shank:			CIR50

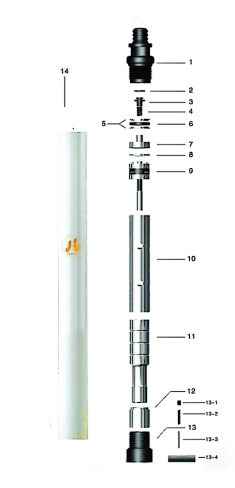

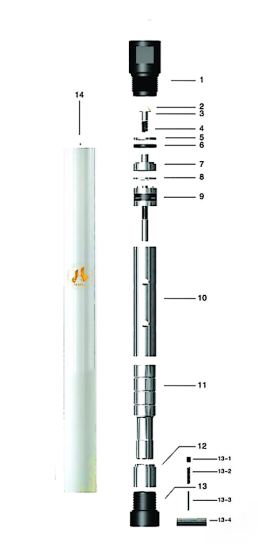

	item Description	Part Number	Item Description	Part Number
	1、Top Sub	CIR50-01	8、Air Distributor	CIR50-08
	2、Cap	CIR50-02	9、Inner Cylinder	CIR50-09
	3、Check Valve	CIR50-03	10、Piston	CIR50-10
	4、Spring	CIR50-04	11、Guide Sleeve	CIR50-11
	5、Shim	CIR50-05	12、Driver Sub	CIR50-12
	6、Valve cap	CIR50-06	13、Outer Sleeve	CIR50-13
	7、Valve	CIR50-07

CIR-60	Product data:
	Hammer Length without bit:			777(mm)
	Top sub thread:			F42x8PIN
	Outside diameter:			53(mm)
	Weight:			7.5(KG)
	Bit diameter:			60(mm)
	Working Pressure:			4-10(Bar)
	Air consumption:			3-7(M³/min)
	Bit shank:			CIR60

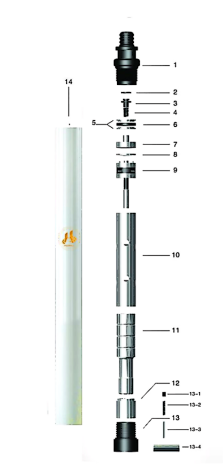

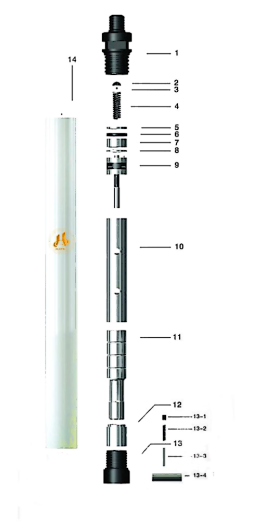

	Item Description	Part Number	ltem Description	Part Number
	1、Top Sub	CIR60-01	8、Valve	CIR60-08
	2、Cap	CIR60-02	9、Air Distributor	CIR60-09
	3、Check Valve	CIR60-03	10、Inner Cylinder	CIR60-10
	4、Spring	CIR60-04	11、Piston	CIR60-11
	5、Shim	CIR60-05	12、Guide Sleeve	CIR60-12
	6、Rubber ring	CIR60-06	13、Driver Sub	CIR60-13
	7、Valve cap	CIR60-07	14、Outer Sleeve	CIR60-14

CIR-65	Product data:
	Hammer Length without bit:			745(mm)
	Top sub thread:			F42x10PIN
	Outside diameter:			61(mm)
	Weight:			13(KG)
	Bit diameter:			65(mm)
	Working Pressure:			4-10(Bar)
	Air consumption:			6-12(M³/min)
	Bit shank:			CIR65
	Item Description

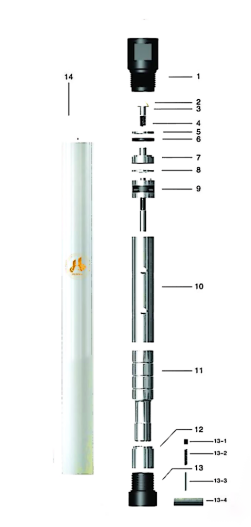

	Item Description	Part Number	ltem Description	Part Number
	1、Top Sub	CIR65-01	8、Valve	CIR65-08
	2、Cap	CIR65-02	9、Air Distributor	CIR65-09
	3、Check Valve	CIR65-03	10、Inner Cylinder	CIR65-10
	4、Spring	CIR65-04	11、Piston	CIR65-11
	5、Shim	CIR65-05	12、Guide Sleeve	CIR65-12
	6、Rubber ring	CIR65-06	13、Driver Sub	CIR65-13
	7、Valve cap	CIR65-07	14、Outer Sleeve	CIR65-14

CIR-76A	Product data:
	Hammer Length without bit:			811(mm)
	Top sub thread:			F48x10PIN
	Outside diameter:			66(mm)
	Weight:			13.5(KG)
	Bit diameter:			76(mm)
	Working Pressure:			4-10(Bar)
	Air consumption:			6-10(M³/min)
	Bit shank:			CIR70

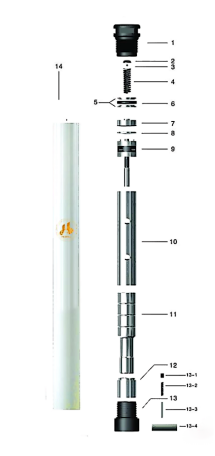

	Item Description	Part Number	ltem Description	Part Number
	1、Top Sub	CIR76A-01	8、Valve	CIR76A-08
	2、Cap	CIR76A-02	9、Air Distributor	CIR76A-0g
	3、Check Valve	CIR76A-03	10、Inner Cylinder	CIR76A-10
	4、Spring	CIR76A-04	11、Piston	CIR76A-11
	5、Shim	CIR76A-05	12、Guide Sleeve	CIR76A-12
	6、Rubber ring	CIR76A-06	13、Driver Sub	CIR76A-13
	7.Valve cap	CIR76A-07	14、Outer Sleeve	CIR76A-14

CIR-90A	Product data:
	Hammer Length without bit:			855(mm)
	Top sub thread:			F48x10PIN
	Outside diameter:			80(mm)
	Weight:			22(KG)
	Bit diameter:			90-120(mm)
	Working Pressure:			5-10(Bar)
	Air consumption:			7-12(M³/min)
	Bit shank:			CIR90

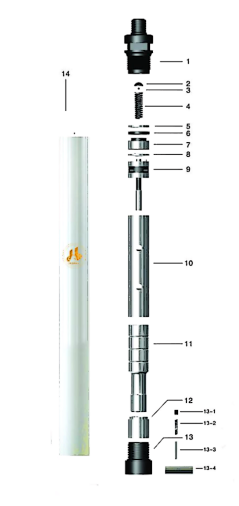

	Item Description	Part Number	ltem Description	Part Number
	1、Top Sub	CIR90A-01	8、Valve	CIR90A-08
	2、Cap	CIR90A-02	9、Air Distributor	CIR90A-09
	3、Check Valve	CIR90A-03	10、Inner Cylinder	CIR90A-10
	4、Spring	CIR90A-04	11、Piston	CIR90A-11
	5、Shim	CIR90A-05	12、Guide Sleeve	CIR90A-12
	6、Rubber ring	CIR90A-06	13、Driver Sub	CIR90A-13
	7、Valve cap	CIR90A-07	14、Outer Sleeve	CIR90A-14


CIR-90B	Product data:
	Hammer Length without bit:			840(mm)
	Top sub thread:			F48x10PIN
	Outside diameter:			80(mm)
	Weight:			22(KG)
	Bit diameter:			90-120(mm)
	Working Pressure:			5-10(Bar)
	Air consumption:			7-12(M³/min)
	Bit shank:			CIR90

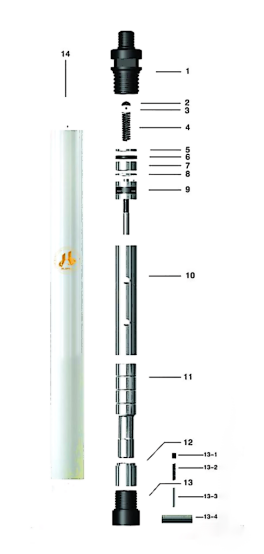

	Item Description	Part Number	ltem Description	Part Number
	1、Top Sub	CIR90B-01	8、Valve	CIR90B-08
	2、Cap	CIR90B-02	9、Air Distributor	CIR90B-09
	3、Check Valve	CIR90B-03	10、Inner Cylinder	CIR90B-10
	4、Spring	CIR90B-04	11、Piston	CIR90B-11
	5、Shim	CIR90B-05	12、Guide Sleeve	CIR90B-12
	6、Rubber ring	CIR90B-06	13、Driver Sub	CIR90B-13
	7、Valve cap	CIR90B-07	14、Outer Sleeve	CIR90B-14

CIR-110B	Product data:
	Hammer Length without bit:			871(mm)
	Top sub thread:			API23/8"REG BOX
	Outside diameter:			98(mm)
	Weight:			33(KG)
	Bit diameter:			110-150(mm)
	Working Pressure:			5-10(Bar)
	Air consumption:			7-12(M³/min)
	Bit shank:			CIR110

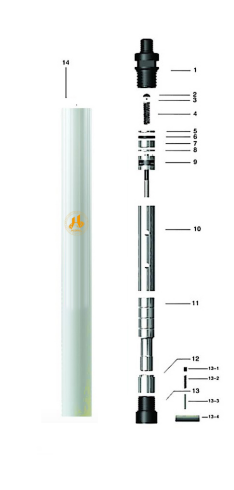

	Item Description	Part Number	Item Description	Part Number
	1、Top Sub	CIR110B-01	8、Valve	CIR110B-08
	2、Cap	CIR110B-02	9、Air Distributor	CIR110B-09
	3、Check Valve	CIR110B-03	10、Inner Cylinder	CIR110B-10
	4、Spring	CIR110B-04	11、Piston	CIR110B-11
	5、Shim	CIR110B-05	12、Guide Sleeve	CIR110B-12
	6、Rubber ring	CIR110B-06	13、Driver Sub	CIR110B-13
	7、Valve cap	CIR110B-07	14、Outer Sleeve	CIR110B-14

CIR-130B	Product data:
	Hammer Length without bit:			890(mm)
	Top sub thread:			API23/8"REG BOX
	Outside diameter:			112(mm)
	Weight:			48.5(KG)
	Bit diameter:			130-175(mm)
	Working Pressure:			5-10(Bar)
	Air consumption:			7-12(M³/min)
	Bit shank:			CIR110/CIR130

	Item Description	Part Number	Item Description	Part Number
	1、Top Sub	CIR130B-01	8、Valve	CIR130B-08
	2、Cap	CIR130B-02	9、Air Distributor	CIR130B-09
	3、Check Valve	CIR130B-03	10、Inner Cylinder	CIR130B-10
	4、Spring	CIR130B-04	11、Piston	CIR130B-11
	5、Shim	CIR130B-05	12、Guide Sleeve	CIR130B-12
	6、Rubber ring	CIR130B-06	13、Driver Sub	CIR130B-13
	7、Valve cap	CIR130B-07	14、Outer Sleeve	CIR130B-14

CIR-150A	Product data:
	Hammer Length without bit:			904(mm)
	Top sub thread:			F70x10 BOX
	Outside diameter:			136(mm)
	Weight:			70(KG)
	Bit diameter:			150-200(mm)
	Working Pressure:			5-10(Bar)
	Air consumption:			10-16(M³/min)
	Bit shank:			CIR150
	item Description	Part Number	Item Description	Part Number
	1、Top Sub	CIR150A-01	8、Valve	CIR150A-08
	2、Cap	CIR150A-02	9、Air Distributor	CIR150A-09
	3、Check Valve	CIR150A-03	10、Inner Cylinder	CIR150A-10
	4、Spring	CIR150A-04	11、Piston	CIR150A-11
	5、Pressure lining	CIR150A-05	12、Guide Sleeve	CIR150A-12
	6、Rubber ring	CIR150A-06	13、Driver Sub	CIR150A-13
	7、Valve cap	CIR150A-07	14、Outer Sleeve	CIR150A-14

CIR-170A	Product data:
	Hammer Length without bit:			1030(mm)
	Top sub thread:			F100x28PIN
	Outside diameter:			156(mm)
	Weight:			96(KG)
	Bit diameter:			170-250(mm)
	Working Pressure:			5-10(Bar)
	Air consumption:			12-18(M³/min)
	Bit shank:			CIR170

	Item Description	Part Number	Item Description	Part Number
	1、Top Sub	CIR170A-01	8、Valve	CIR170A-08
	2、Cap	CIR170A-02	9、Air Distributor	CIR170A-09
	3、Check Valve	CIR170A-03	10、Inner Cylinder	CIR170A-10
	4、Spring	CIR170A-04	11、Piston	CIR170A-11
	5、Pressure lining	CIR170A-05	12、Guide Sleeve	CIR170A-12
	6、Rubber ring	CIR170A-06	13、Driver Sub	CIR170A-13
	7、Valve cap	CIR170A-07	14、Outer Sleeve	CIR170A-14

CIR-200A	Product data:

	Hammer Length without bit:			1058(mm)
	Top sub thread:			F100x28 PIN
	Outside diameter:			182(mm)
	Weight:			130(KG)
	Bit diameter:			200-250(mm)
	Working Pressure:			5-10(Bar)
	Air consumption:			16-20(M³/min)
	Bit shank:			CIR200

	Item Description	Part Number	Item Description	Part Number
	1、Top Sub	CIR200A-01	8、Valve	CIR200A-08
	2、Cap	CIR200A-02	9、Air Distributor	CIR200A-09
	3、Check Valve	CIR200A-03	10、Inner Cylinder	CIR200A-10
	4、Spring	CIR200A-04	11、Piston	CIR200A-11
	5、Pressure lining	CIR200A-05	12、Guide Sleeve	CIR200A-12
	6、Rubber ring	CIR200A-06	13、Driver Sub	CIR200A-13
	7、Valve cap	CIR200A-07	14、Outer Sleeve	CIR200A-14
