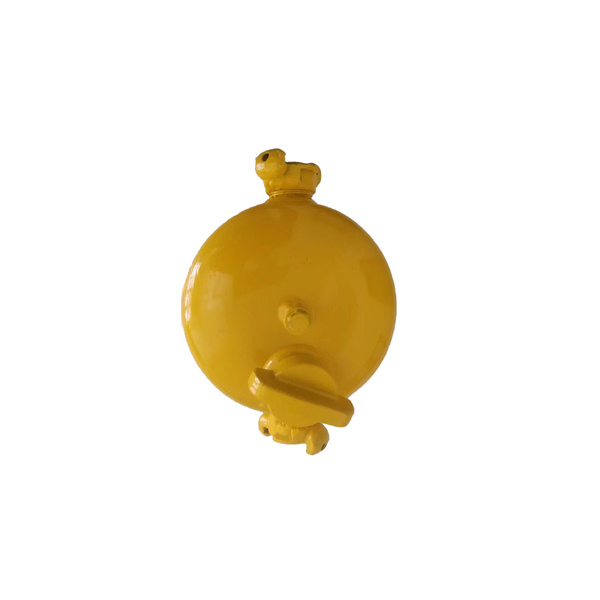

Product name:HENGLONG 30 Lubricator
Oil volume:1.3 Litre(0.34 Gallons)
Hose connection:25mm(1")
Air flow:25-130 l/s(53-282cfm)
Max pressure:20 bar
Weight:3.0kg

Key words：

Accessories

Related Products

Message

Product Details

Description:

HL30 Lubricator is designed to lubricate compressed air equipment using mineral oil. No other use is permitted. Air flows through the lubricator from the air inlet, partly directly to the pneumatic machine and partly through the air pipe into the oil chamber so that static pressure acts on the oil level in the lubricator. The air forces the oil up into the oil pipe through both the pipe opening and the small drilled holes in the oil pipe, finally reaching the oil dosage screw. The through-flow pipe is pinched opposite the oil duct (Venturi), thus increasing the flow rate of the compressed air and reducing the air pressure at the mouth of the oil duct. Because of the pressure difference, the lubricating oil is forced out into the through-flow pipe where the oil is atomized and carried with the air via the hose to the pneumatic machine. The supply of oil can be regulated by using the oil dosage screw to open or close the oil duct.

Performance:

A good lubricant improves the functioning of pneumatic equipment. It reduces wear and the need for maintenance,increases productivity and impoves the overall economy.HENGLONG offers the lubricatorrs (oil bottles) to ensure efective lubrication of all compressed air machines.

Application:

HENGLONG offers the lubricatorrs (oil bottles) to ensure efective lubrication of all compressed air machines.

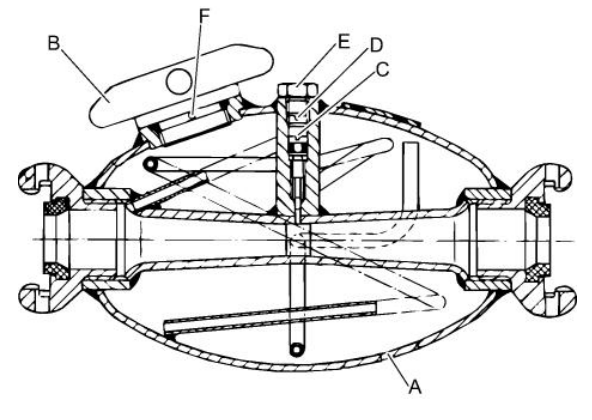

Main parts:

A. Oil chamber

B. Filler plug

C. Oil dosage screw

D. Lock ring

E. Plug

F. Venting duct

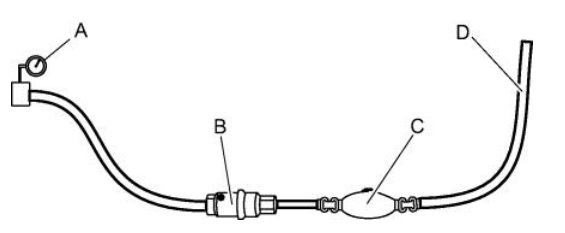

Hoses and connections:

A. Compressed air source

B. Water separator (optional)

C. Lubricator

D. Max. 3 m (10 ft) compressed air hose between the lubricator and the pneumatic machine.

♦The maximum permissible air pressure, 20 bar (e) (290 psi), must not be exceeded.

♦ Blow any impuritiesoutof thecompressedairhose

before connecting it to the lubricator.

♦ For the HL 30 Lubricator a hose with a minimum internal diameter of 20-25 mm ( 3 ⁄4-1 in.) must be used.

♦ There is a an arrow on the lubricator to indicate the correct direction of air flow. When connecting the lubricator, make sure that the arrow points in the same direction as the air flow.

Specification

Model #	HL30
Oil volume	1.3 Litre	0.34 Gallons
Hose connecƟon	25 mm	1"
Air flow	25 - 130 l/s	53 - 282 cfm
Max pressure	20 bar	290 psi
Weight	3.35 kg	7.2 lbs
