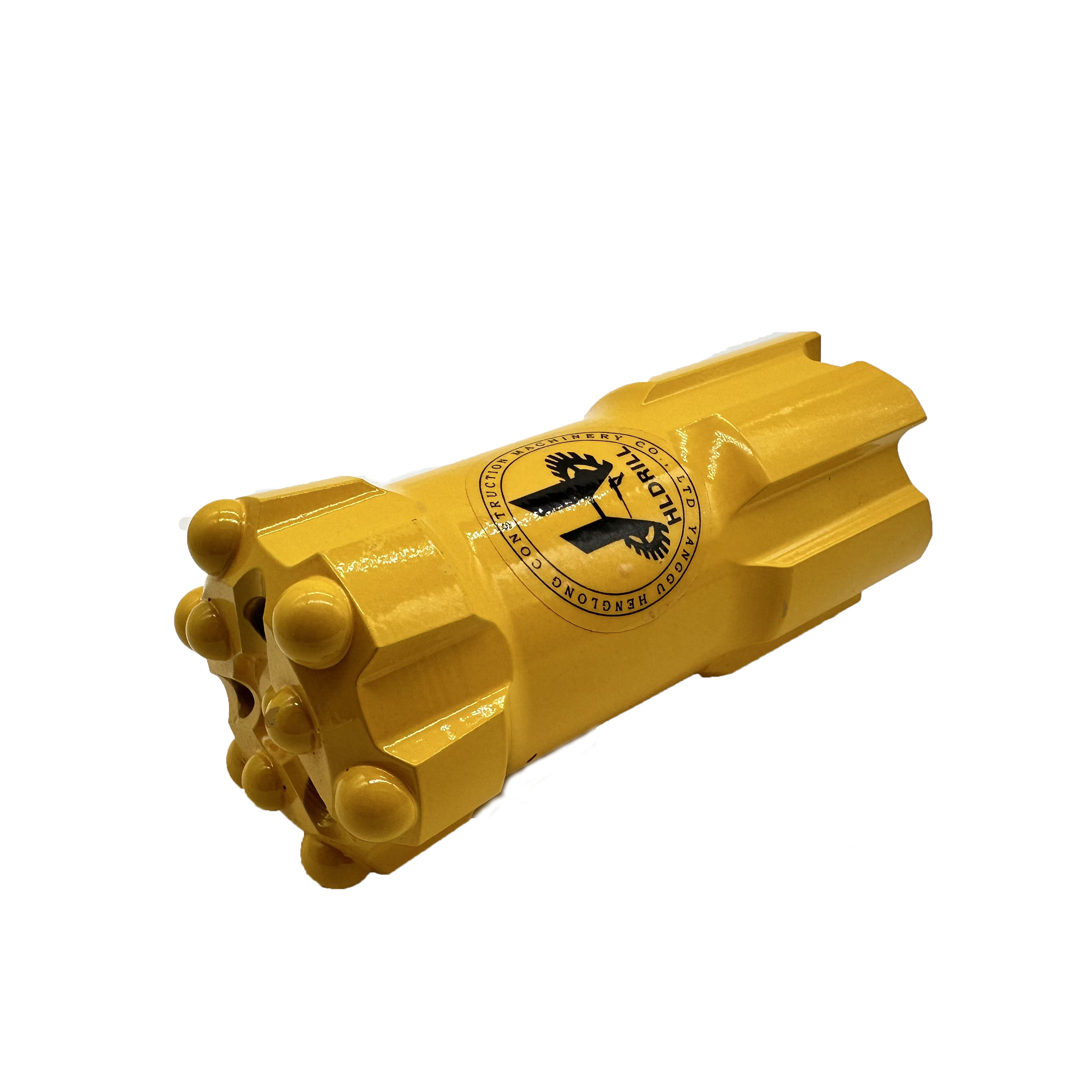

Retrac Button Bit

Product name:64T38 retrac button bit
Thread:T38
Diameter: 64mm
Length:140mm
No.×Buttons Dia.:1×8mm,3×10mm,6×12mm
Skirt Design: retrac
Weight: 1.9kg
Carbide Design:spherical
Face Design:drop center
Carbide Brand and Grade :ZCC/YK05
Steel grade :45CrNiMoVA

Key words：

Thread Button Bit

Related Products

Message

Product Details

Description

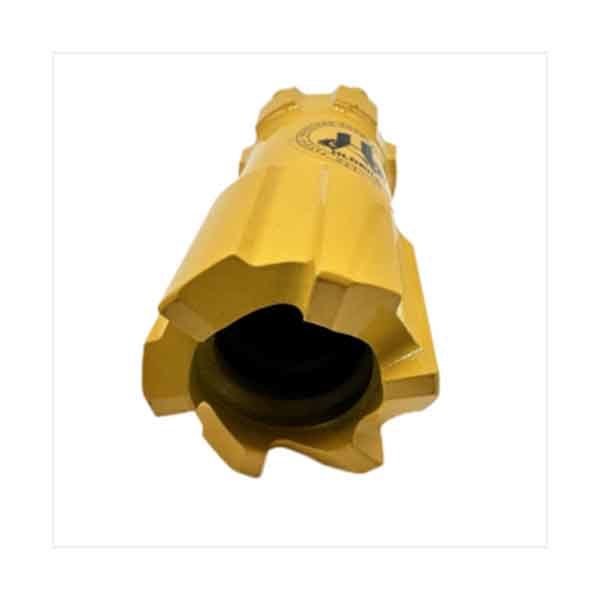

Retrac button bits are mainly used in loose rock mass with relatively broken rock. The retrac skirt design can assist in retrieving the drill tool, reduce the phenomenon of bit stuck and buried, and help improve the straightness of the borehole.
T38 Retrac Button Bits are the most important size for benching and underground long-hole drilling
We will choose to use tungsten carbide of T6/YK05，featuring good wear-resistance and toughness.

Performance

HENGLONG retrac button bits are made of high-quality steel and cemented carbide as raw materials, so they have a long service life. And the use of retrac bits minimize the loss of impact energy during transmission. In addition, the advanced button fixing technology makes the fixing force uniform and not easy to loose buttons. Meanwhile, the use of retract drill bits also ensures the perpendicularity of the borehole, so that the impact energy is concentrated on the rock and the drilling efficiency is improved.

Application

Used in mining, rock drilling, or tunneling and blasting.

Details Form

T38 thread button bit
Drill bit	Diameter		NO.×button diameter			Flushing hole		Weight （kg）
	Diameter								HLDRLL P/N
	mm	inch
	mm	inch	Frount	Gauge	Angle	Front	side

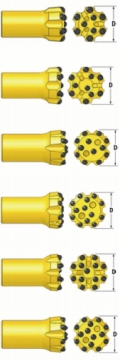

Button bit	Spherical buttons
	64	2 1/2	3×11	6×12	35°	3	-	1.8	1431-64T38-311/612-45-31
	64	2 1/2	4×10	8×10	40°	2	-	1.6	1431-64T38-410/810-45-31
	64	2 1/2	3×10，1×10	6×11	35°	3	-	1.7	1433-64T38-410/611-45-31
	70	2 3/4	4×11	8×11	40°	2	-	1.9	1431-70T38-411/811-45-31
	70	2 3/4	4×10,1×10	8×11	30°	4	-	1.9	1432-70T38-510/811-45-31
	70	2 3/4	3×10，1×10	6×12	35°	3	-	1.8	1433-70T38-410/612-45-31
	76	3	4×11	8×11	40°	2	-	2.4	1431-76T38-411/811-45-31
	76	3	5×11	8×13	35°	2	1	2.4	1431-76T38-511/813-45-31
	76	3	3×11，1×11	6×12	35°	3	1	2.6	1433-76T38-411/612-45-31
	76	3	4×11，1×11	8×12	35°	4	-	2.6	1432-76T38-511/812-45-31
	76	3	4×11，1×11	8×11	40°	4	-	2.6	1432-76T38-511/811-45-31
	89	3 1/2	4×13	8×13	40°	2	-	3.3	1431-89T38-413/813-45-31
	89	3 1/2	5×13	8×13	35°	2	-	3.3	1431-89T38-513/813-45-31
	89	3 1/2	6×11	8×12	35°	2	-	3.3	1431-89T38-611/812-45-31
	89	3 1/2	3×11，2×11	6×13	35°	3	1	3.3	1433-89T38-511/613-45-31
	89	3 1/2	4×11，1×11	8×13	35°	4	-	3.3	1433-89T38-511/813-45-31
	89	3 1/2	4×13，1×13	8×13	35°	4	-	3.3	1432-89T38-513/813-45-31
	Parabolic buttons
	64	2 1/2	3×11	6×12	35°	3	-	1.8	1431-64T38-311/612-45-51
	64	2 1/2	4×10	8×10	40°	2	-	1.6	1431-64T38-410/810-45-51
	64	2 1/2	3×10，1×10	6×11	35°	3	-	1.7	1433-64T38-410/611-45-51
	70	2 3/4	4×11	8×11	40°	2	-	1.9	1431-70T38-411/811-45-51
	70	2 3/4	3×10，1×10	6×12	35°	3	-	1.8	1433-70T38-410/612-45-51
	76	3	4×11	8×11	40°	2	-	2.4	1431-76T38-411/811-45-51
	76	3	5×11	8×13	35°	2	1	2.4	1431-76T38-511/813-45-51
	76	3	3×11，1×11	6×13	35°	3	1	2.6	1433-76T38-411/613-45-51
	76	3	4×11，1×11	8×12	35°	4	-	2.6	1432-76T38-511/812-45-51
	76	3	4×11，1×11	8×11	40°	4	-	2.6	1432-76T38-511/811-45-51
	89	3 1/2	5×13	8×13	35°	2	-	3.3	1431-89T38-513/813-45-51
	89	3 1/2	6×11	8×12	35°	2	-	3.3	1431-89T38-611/812-45-51
	89	3 1/2	3×11，2×11	6×13	35°	3	1	3.3	1433-89T38-511/613-45-51
	89	3 1/2	4×11，1×11	8×13	35°	4	-	3.3	1433-89T38-511/813-45-51
	89	3 1/2	4×13，1×13	8×13	35°	4	-	3.3	1432-89T38-513/813-45-51

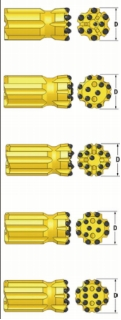

Retrac button bit	Spherical buttons
	64	2 1/2	4×10	8×10	30°	2	-	2.2	1531-64T38-410/810-45-31
	64	2 1/2	3×10，1×10	6×11	35°	3	-	2.2	1533-64T38-410/611-45-31
	70	2 3/4	4×11	8×11	40°	2	-	2.4	1531-70T38-411/811-45-31
	70	2 3/4	3×10，1×10	6×13	35°	3	-	2.4	1533-70T38-410/613-45-31
	70	2 3/4	4×10,1×10	8×11	35°	4	-	2.4	1632-70T38-510/811-45-31
	76	3	4×11	8×11	40°	2	-	3.3	1531-76T38-411/811-45-31
	76	3	4×11，1×11	8×11	35°	4	-	3.3	1632-76T38-511/811-45-31
	76	3	4×11，1×11	8×12	35°	4	-	3.3	1632-76T38-511/812-45-31
	89	3 1/2	4×13	8×13	40°	2	-	4.8	1531-89T38-413/813-45-31
	89	3 1/2	5×13	8×13	35°	2	-	4.8	1531-89T38-513/813-45-31
	89	3 1/2	6×11	8×12	35°	2	-	4.8	1531-89T38-611/812-45-31
	89	3 1/2	4×11，1×11	8×13	35°	4	-	4.8	1533-89T38-511/813-45-31
	89	3 1/2	4×13，1×13	8×13	35°	4	-	4.8	1531-89T38-513/813-45-31
	Parabolic buttons
	64	2 1/2	4×10	8×10	30°	2	-	2.2	1531-64T38-410/810-45-51
	64	2 1/2	3×10，1×10	6×11	35°	3	-	2.2	1533-64T38-410/611-45-51
	70	2 3/4	4×11	8×11	40°	2	-	2.4	1531-70T38-411/811-45-51
	70	2 3/4	3×10，1×10	6×13	35°	3	-	2.4	1533-70T38-410/613-45-51
	70	2 3/4	4×10,1×10	8×11	35°	4	-	2.4	1632-70T38-510/811-45-51
	76	3	4×11	8×11	40°	2	-	3.3	1531-76T38-411/811-45-51
	76	3	4×11，1×11	8×11	35°	4	-	3.3	1632-76T38-511/811-45-51
	76	3	4×11，1×11	8×12	35°	4	-	3.3	1632-76T38-511/812-45-51
	89	3 1/2	4×13	8×13	40°	2	-	4.8	1531-89T38-413/813-45-51
	89	3 1/2	5×13	8×13	35°	2	-	4.8	1531-89T38-513/813-45-51
	89	3 1/2	6×11	8×12	35°	2	-	4.8	1531-89T38-611/812-45-51
	89	3 1/2	4×11，1×11	8×13	35°	4	-	4.8	1533-89T38-511/813-45-51
	89	3 1/2	4×13，1×13	8×13	35°	4	-	4.8	1531-89T38-513/813-45-51
X-type bit	64	2 1/2	25×13		-	1	2	1.9	1321-64T38-25/13-42-23
	76	3	25×13		-	1	2	2.5	1321-76T38-25/13-42-23
	89	3 1/2	25×13		-	1	2	2.8	1321-89T38-25/13-42-23
	Spherical buttons
Dome bit for reaming	102	4	1×13	16×13	35°	2	2	3.8	1441-102T38-113/1613-45-31
	127	5	1×13	18×13	35°	1	3	5.2	1441-127T38-113/1813-45-31
	Parabolic buttons
	102	4	1×13	16×13	35°	2	2	3.8	1441-102T38-113/1613-45-51
	127	5	1×13	18×13	35°	1	3	5.2	1441-127T38-113/1813-45-51

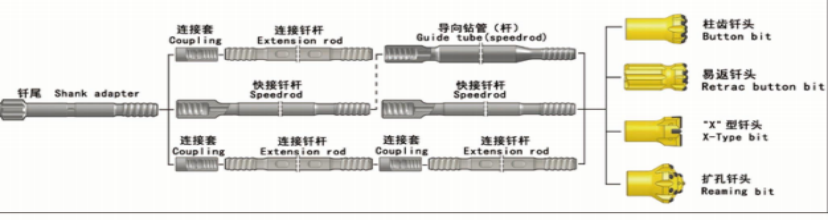

T 38 Drill rod				length		Diameter		Weight（kg）
				length		Diameter			HLDRLL P/N
				mm	Foot	mm	inch
				mm	Foot	mm	inch
Extension rod T38-Round39-T38 Flushing hole 14.5mm Wrench flat 32mm				1220	4'	39	1 1/2	10.2	23R39-T38-1220-23
				1525	5'	39	1 1/2	12.8	23R39-T38-1525-23
				1830	6'	39	1 1/2	15.3	23R39-T38-1830-23
				2435	8'	39	1 1/2	20.4	23R39-T38-2435-23
				3050	10'	39	1 1/2	25.5	23R39-T38-3050-23
				3660	12'	39	1 1/2	30.9	23R39-T38-3660-23
				3965	13'	39	1 1/2	33.2	23R39-T38-3965-23
				4270	14'	39	1 1/2	35.7	23R39-T38-4270-23
				4880	16'	39	1 1/2	41	23R39-T38-4880-23
				5530	18'11/2"	39	1 1/2	46.3	23R39-T38-5530-23
				6095	20'	39	1 1/2	50.9	23R39-T38-6095-23
MF-rod T38-Round39-T38 Flushing hole 14.5mm				915	3'	39	1 1/2	10.7	24R39-T38/57-0915-23
				1220	4'	39	1 1/2	13.3	24R39-T38/57-1220-23
				1525	5'	39	1 1/2	15.8	24R39-T38/57-1525-23
				1830	6'	39	1 1/2	18.3	24R39-T38/57-1830-23
				3050	10'	39	1 1/2	28.5	24R39-T38/57-3050-23
				3660	12'	39	1 1/2	33.6	24R39-T38/57-3660-23
				4270	14'	39	1 1/2	38.7	24R39-T38/57-4270-23
				4880	16'	39	1 1/2	43.7	24R39-T38/57-4880-23
				5530	18'11/2"	39	1 1/2	49.2	24R39-T38/57-5530-23
				6095	20'	39	1 1/2	53.9	24R39-T38/57-6095-23
Hex.extension rod T38-Hex32-T38 Flushing hole 9.6 mm				1220	4'	32	1 1/4	8.6	23H32-T38-1220-23
				1830	6'	32	1 1/4	12.6	23H32-T38-1830-23
				2435	8'	32	1 1/4	16.6	23H32-T38-2435-23
				3050	10'	32	1 1/4	20.8	23H32-T38-3050-23
				3660	12'	32	1 1/4	24.9	23H32-T38-3660-23
Double thread rod T38-Round39-T38				3050	10'	46	1 3/4	25.7	23R39-T38/2T38-3050-23


				3660	12'	46	1 3/4	30.9	23R39-T38/2T38-3660-23
Guide speedrod T38-round46-T38 Flushing hole 17mm				1830	6'	46	1 3/4	23.5	24R46-T38/57-1830-23
				3050	10'	46	1 3/4	37.2	24R46-T38/57-3050-23
				3660	12'	46	1 3/4	44	24R46-T38/57-3660-23
				4270	14'	46	1 3/4	50.9	24R46-T38/57-4270-23
				4880	16'	46	1 3/4	57.7	24R46-T38/57-4880-23
				5530	18'11/2"	46	1 3/4	65	24R46-T38/57-5530-23
				6095	20'	46	1 3/4	71.3	24R46-T38/57-6095-23

HENGLONG workshop and Process of manufacturing

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
