S250 Pneumatic rock drill

Product name:S250 Pneumatic rock drill Weight:35 Kg Stroke:7325mm Bore:749mm Air connection:25mm Water connection:12mm Shank Size:H22×108mm

Key words：

Rock Drill

Related Products

Message

Product Details

Description

The HENGLONGDRILL S250 is a highly efficient pusher leg rock drill. It is mainly used in rock drilling work such as mining and tunneling, railway, water conservancy construction projects and stone work. It is suitable for wet drilling on hard and medium hard rock, drilling horizontal or inclined blast holes.
S250 Pneumatic rock drill has been the preferred choice of miners who demand high performance, superior control and lasting reliability. the S250 Pneumatic rock drill allows operators to drill in confined spaces with challenging drilling directions while providing high drilling speeds and strong torque even at low air pressures. Push leg controls are integrated into the rear end of the rig to maximize safety and comfort. jackleg has a large contact area between the main cylinder components to reduce impact pressure and increase product life.

Performance

High penetration rate and strong torque even at low air pressure
Minimum downtime and low maintenance cost

Applications
S250 Rock Drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.

Specification

43	149-12-2MT	1	Lock Washer,M12 Belleville
47	164-631A	1	Friction Ring
78A	9001093	1	Ferrule,Cylinder/Liner,Front Cylinder
65	C1272	1	Screen,Water Inlet
86	C1516	1	Washer,Chuck
84	C1527	1	Nut,Spindle

115	B1851A	1	Piston Rod-51" Stroke

YSP45 Portable Stoper rock drill
Weight	44			kg
Physical size(lengthwidehigh)	1420390160			mm
Cylinder Diameter	95			mm
Piston Structure Stroke	47			mm
Air leg Propulsion Stroke	750			mm
Air leg Cylinder Bore	74			mm
Working Pressure	0.63	0.5	0.4	Mpa
Impact Energy	≥73.5	≥70	≥57	J
Drilling air Consumption	≤113.3	≤83	≤80	L/s
Drilling Impact Frequency	≥46	≥45	≥42	Hz
Torque	≥21	≥18	≥15	N.m
Use Hydraulic	0.3			Mpa
Tracheal Diameter	25			mm
Pipe Diameter	13			mm
Appropriate drilling Hole Dia .	34~42			mm
Suitable for max hole depth	6			m
Working Temperature	-30~50			°C
Bit Shank Specification	H22*108 ± 1			mm

FY500A Olier
Weight	2.5	kg
Oil Capacity	0.52	L

HENGLONG workshop and Process of manufacturing

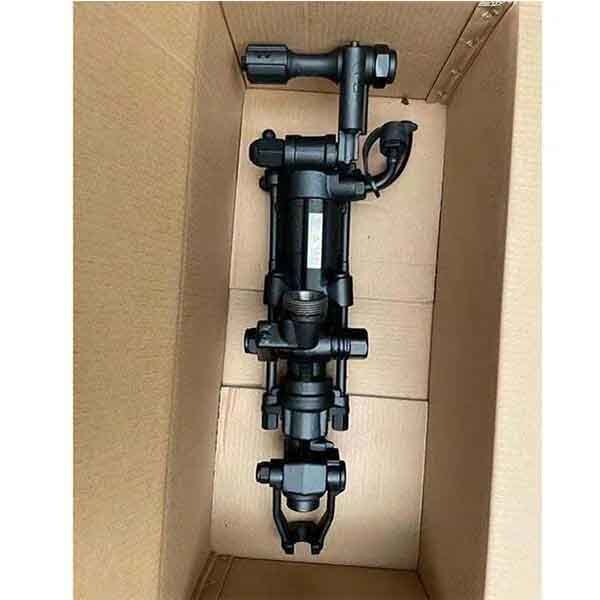

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
