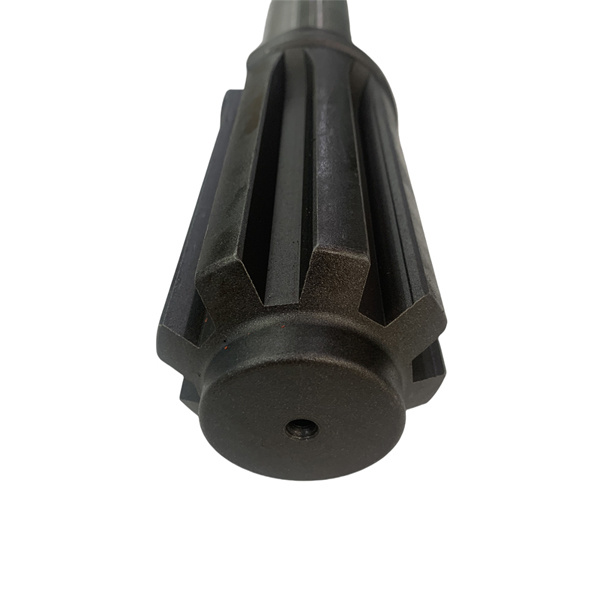

Sandvic HL1000-65GT60-760mm shank adapter

Sandvic HL1000-65GT60-760mm shank adapter

Product name:Sandvic HL1000-GT60-760mm shank adapter
Length:760mm
Thread Type:GT60
Dia.:65mm
Weight:16.8Kg
Rock Drill Type:Sandvic HL1000 PE-65,HL1010PE-65,HL 1060T/PE-65,HL1500T/PE-65,
HL1560T/PE-65,HF1560,HF1560 PE, RD1635CF
Material:23CrNi3Mo

Key words：

Top Hammer Tools

Shank Adapter

Related Products

Message

Product Details

Description

The shank adapter can be a part of the drill or an independent shank rod. The shank adapter is mainly used in mining operations. It is made of carbide tungsten and is full carburizition. The shank adapter has a great influence on the drilling speed, the life of the drill rig and the drill bit.

The hardness of the shank adapter should be appropriate. If it is too soft, the life of the shank adapter will be short. If it is too hard, the piston will be easily damaged. Generally, the hardness of the shank adapter should be slightly lower than the hardness of the piston.

Yanggu Henglong Construction Machinery Co., Ltd Sandvic HL1000-65GT60-760mm shank adapter

It is made of round steel and uses a sophisticated processing technology. The raw materials are heat treated on the surface to make the hardness and toughness of the finished product moderate, which improves the performance and durability of the product. In addition, the thread of the shank of HLDRILL is finely processed, and it can be tightly connected with the connecting sleeve, drill rod, drill bit, etc., and the matching degree is very high. The perfect matching degree avoids the risk of the drill bit falling off and the rod body bending, and is conducive to maintaining the straightness of the hole. The factory has a strict quality management system, and the process quality inspection is also very careful.

In addition, this shank has a wide adaptability. It is suitable for use with Sandvic HL1000 PE-65, HL1010PE-65, HL 1060T/PE-65, HL1500T/PE-65, HL1560T/PE-65, HF1560, HF1560 PE, RD1635CF and many other drilling rigs.

Performance

Wide adaptability
Durable
Precise thread design, easy to connect

Application

GT60 Shank Adapter are one of the most important size for benching. GT60 Shank Adapter are used in Sandvik Pantera DP1500i heavy duty top hammer focusing big and long hole drilling for bench and surface mining.

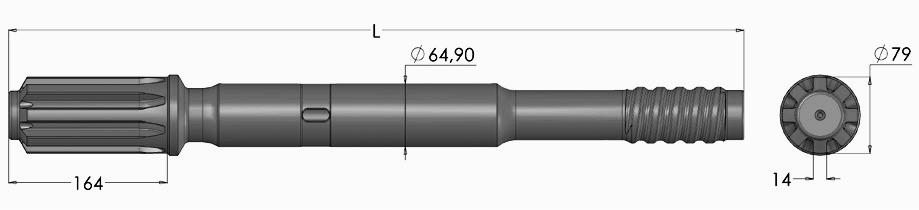

Specification

SANDVIC Shank Adapter	Rock Drill	Thread	Length(mm）	Weight（kg）	P/N
	HL1000PE-65,HL1010 PE-65, HL1060T/PE-65,HL1500T/PE-65, HL1560T/PE-65,HF1560,HF1560 PE,RD1635 CF	T51	760	16.8	4HL1000PE-65T51-0760-23
		ST58	760	16.8	4HL1000PE-65ST58-0760-23
		GT60	760	16.8	4HL1000PE-65GT60-0760-23
		T-WiZ60	760	16.8	4HL1000PE-65T-WiZ60-0760-23

HENGLONG workshop and Process of manufacturing

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
