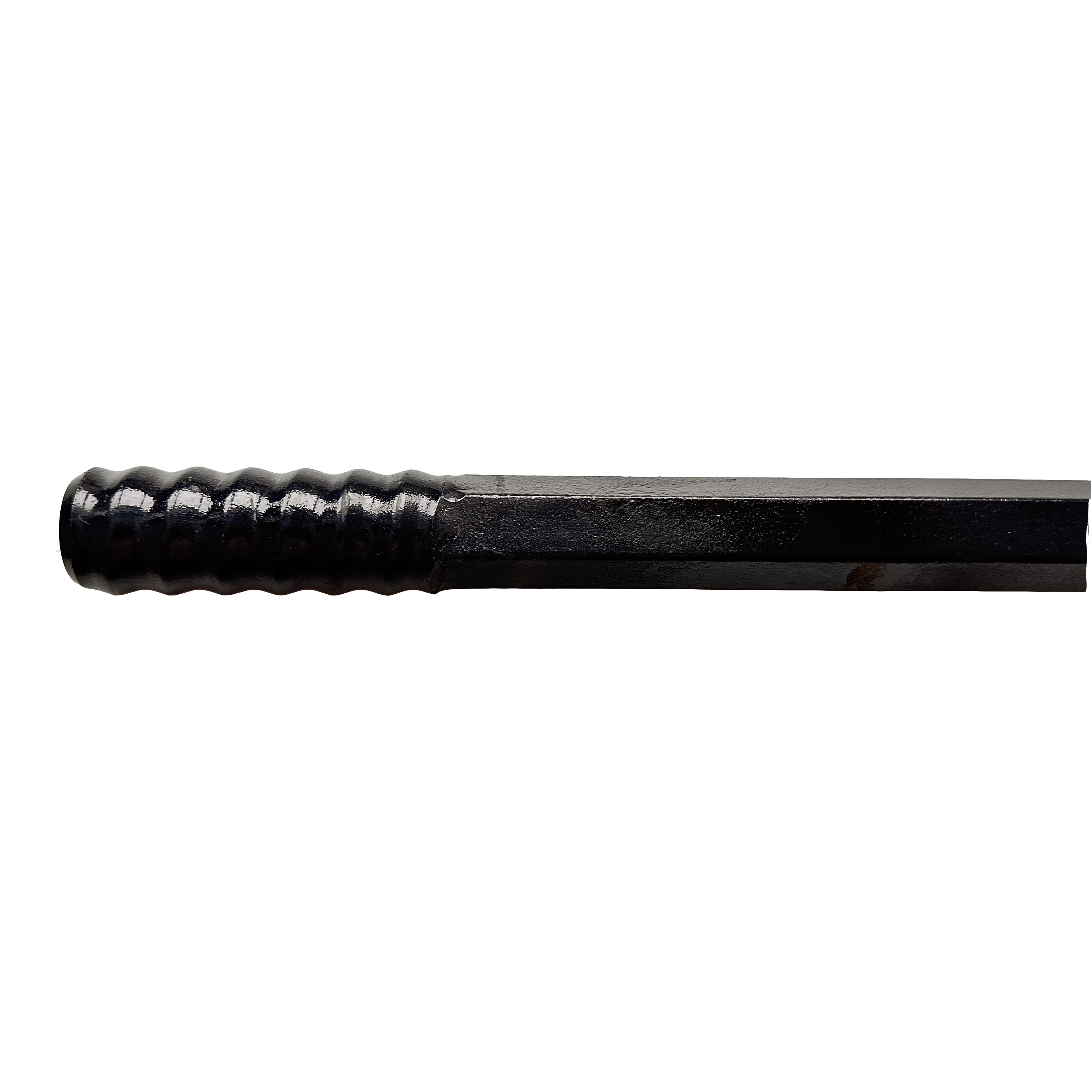

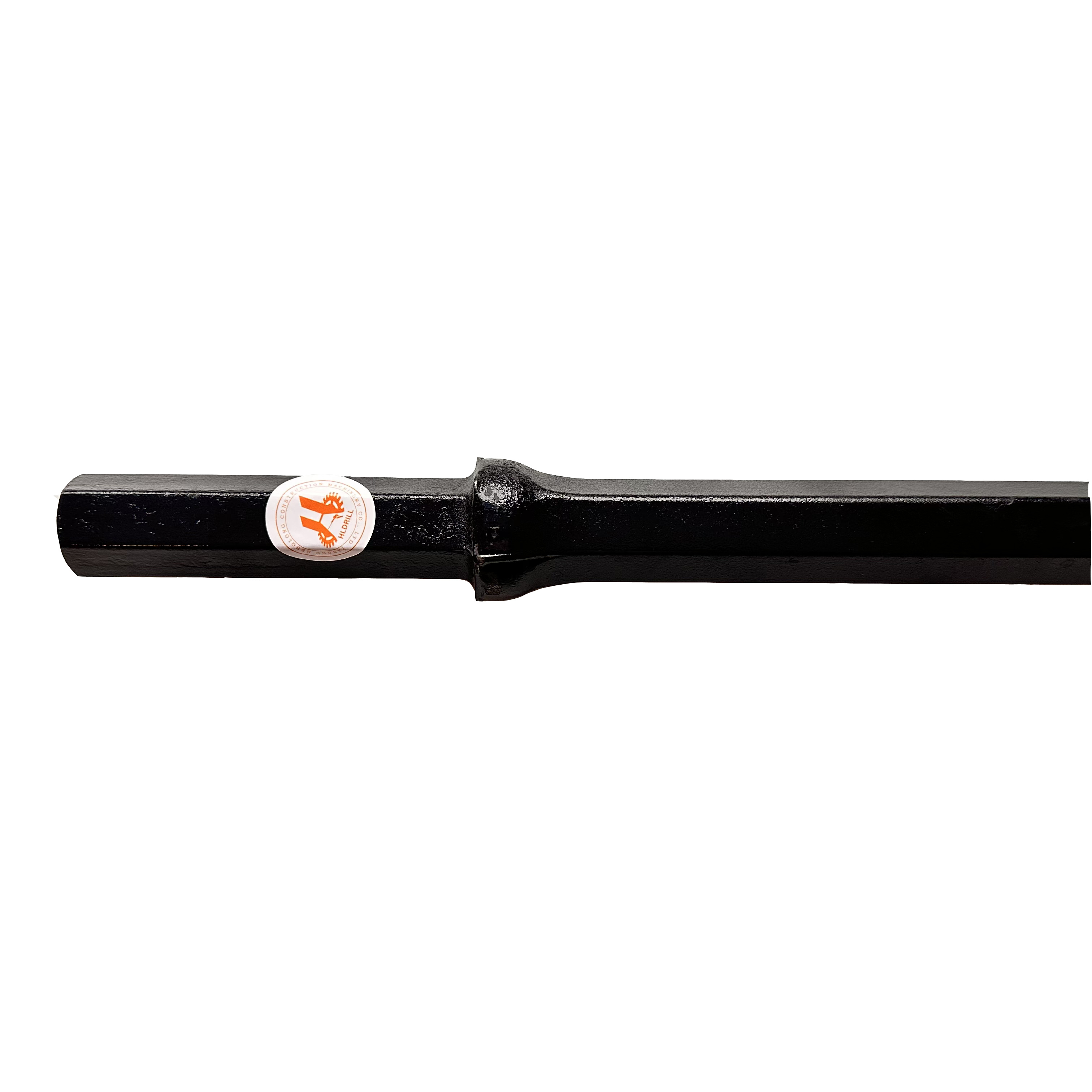

Shank rod -L300mm-R25
Shank size:H22*108
Effective length:300mm
Weight:1.25kg
Material:23CrNi3Mo
Key words：
Shank rod
Product Details
Description
Our shank rods are precision machined from high quality steel, then heat treated to insure streneth and durability.Shank size is H22 x 108mm, and shank end drill rod end connect bit with thread way. Normally R22,R25,R32 for small hole. We manufacture shank end rods in the following threads: R22, R23, R25, R28, R32 mainly focus the stone quarrying such as granite, marble, limestone, sand stone quarries drilling, diameter of hole range from 38mm-50mm at most.
Performance
- Mature technology
- high-quality steel
- high toughness and wear resistance
Application
shank rods used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc.
Specification:
| Shank | Length | Thread | |
H22*108 H25*108 H25*159
| mm | foot | R22, R25, R32,T38,T45 |
| 250mm | 9" | ||
| 400mm | 1'3" | ||
| 800mm | 2'7" | ||
| 1220mm | 4' | ||
| 1600mm | 5'3" | ||
| 1830mm | 6' | ||
| 1980mm | 6'4" | ||
| 2400mm | 7'10" | ||
| 2440mm | 8' | ||
| 3050mm | 10' | ||
| 2200mm | 7'2" | ||
| 2600mm | 8'6" | ||
| 4000mm | 13'1" | ||
HENGLONG workshop and Process of manufacturing
Packing and shipping
Factory
Customer visit
Production
QUALITY INSPECTION PROCESS
Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
