Type :MM drill rod,MF drill rod,Hex drill rod,round drill rod,guide tube. Thread:T38 Diameter:39mm,32mm,46mm,56mm Length:800mm--6000mm, Support custom

Key words：

Top Hammer Tools

Thread Drill Rod

Related Products
Message

Product Details

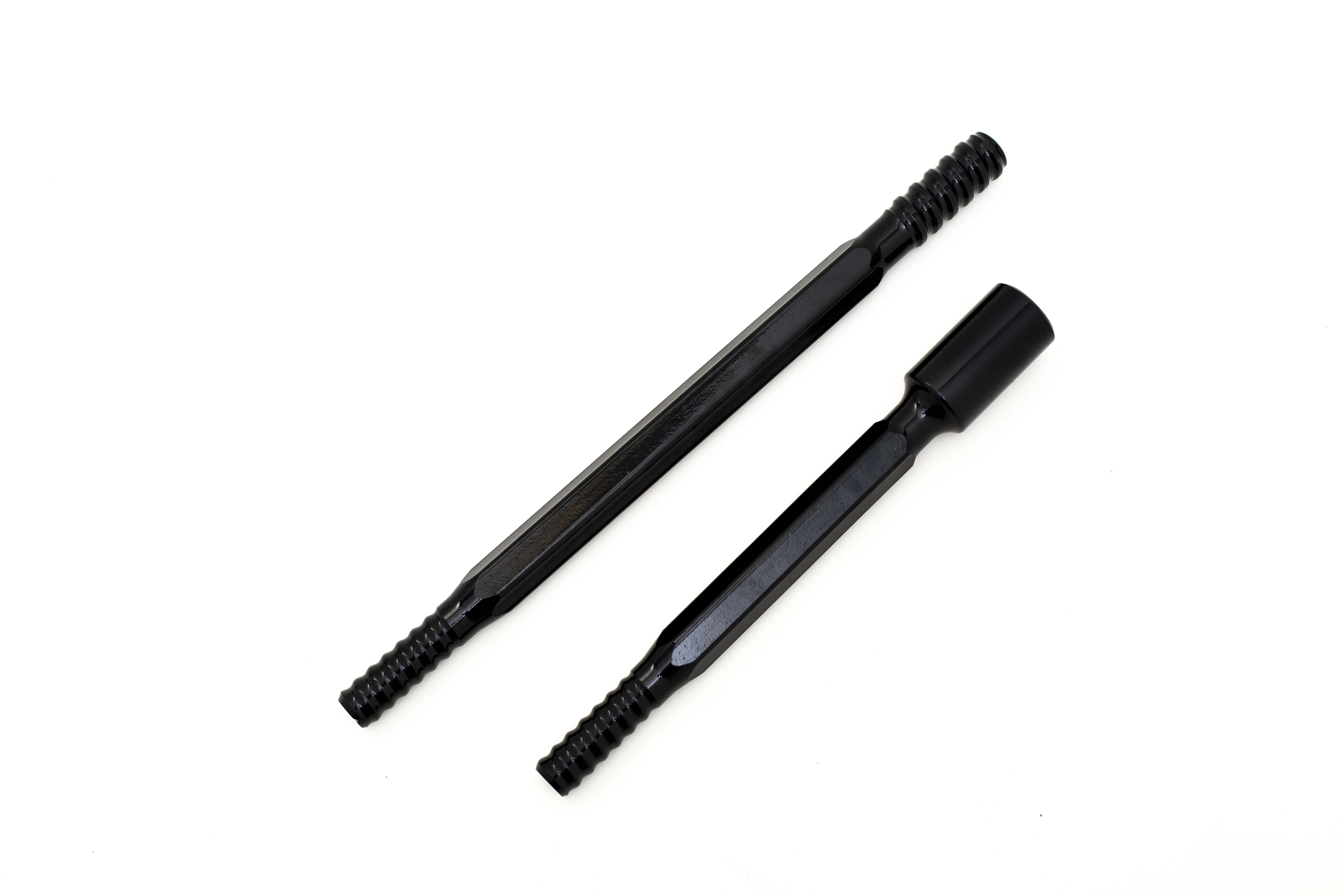

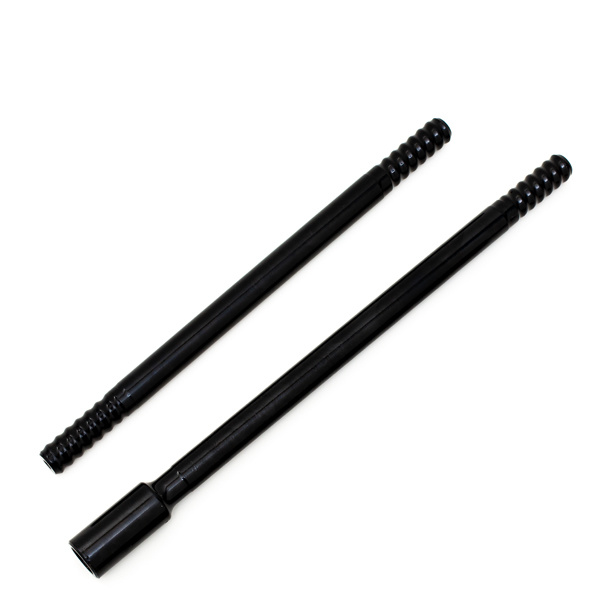

Type :MM drill rod,MF drill rod,Hex drill rod,round drill rod,guide tube.

Thread:T38

Diameter:39mm,32mm,46mm,56mm

Length:800mm--6000mm, Support custom



Description

HLDRILL T38 drill rod has a reasonable design structure, can adapt to different working conditions, improve drilling efficiency and reduce costs, and has been widely recognized and applied.

HLDRILL T38 drill rod is mainly high-quality alloy steel, which has high hardness and wear resistance after precision machining. Its surface has been heat-treated and surface-treated, which has good corrosion resistance and can be used for a long time in harsh environments without being affected. The connection thread of T38 drill pipe is processed with high precision to ensure the stability and sealing of the connection, effectively avoid wear and oil leakage, and extend the service life.

Performance

  • high strength
  • wear resistance
  • stability and sealing Connection
  • long life

Application

T38 drill rod is a kind of accessory widely used in mine drilling and tunnel engineering.



Specification

T38 drill rods are available in various specifications, with different lengths and diameters available to meet different needs. The length and diameter of the drill rod have an important impact on drilling efficiency and cost. Choosing the right specifications can improve drilling efficiency and reduce costs.

More about HLDRIL T38 drill rod,refer to the table below















Drill rod T38

 Length

Diameter

Weight
approx kg

HENGLONG  PN

mm

foot

mm

inch

Extension rod T38-Round39-T38
Flushing hole 14.5mm
Wrench flat 32mm
Full carburization

915

3'

39

1 17/32"

10.00

24R39-T38/T38-0915-23

1220

4'

39

1 17/32"

10.20

23R39-T38/T38-1220-23

1525

5'

39

1 17/32"

12.80

23R39-T38/T38-1525-23

1830

6'

39

1 17/32"

15.30

23R39-T38/T38-1830-23

2435

8'

39

1 17/32"

20.40

23R39-T38/T38-2435-23

3050

10'

39

1 17/32"

25.50

23R39-T38/T38-3050-23

3660

12'

39

1 17/32"

30.90

23R39-T38/T38-3660-23

3965

13'

39

1 17/32"

33.20

23R39-T38/T38-3965-23

4270

14'

39

1 17/32"

35.70

23R39-T38/T38-4270-23

4880

16'

39

1 17/32"

41.00

23R39-T38/T38-4880-23

5530

18'

39

1 17/32"

46.30

23R39-T38/T38-5530-23

6095

20'

39

1 17/32"

50.90

23R39-T38/T38-6095-23

MF-rod T38-Round39-T38                                                                                                         Flushing hole 14.5mm
Full carburization

915

3'

39

1 17/32"

10.70

24R39-T38/57-0915-23

1220

4'

39

1 17/32"

13.30

24R39-T38/57-1220-23

1525

5'

39

1 17/32"

15.80

24R39-T38/57-1525-23

1830

6'

39

1 17/32"

18.30

24R39-T38/57-1830-23

3050

10'

39

1 17/32"

28.50

24R39-T38/57-3050-23

3660

12'

39

1 17/32"

33.60

24R39-T38/57-3660-23

4270

14'

39

1 17/32"

38.70

24R39-T38/57-4270-23

4880

16'

39

1 17/32"

43.70

24R39-T38/57-4880-23

5530

18'

39

1 17/32"

49.20

24R39-T38/57-5530-23

6095

20'

39

1 17/32"

53.90

24R39-T38/57-6095-23

Hex.extension rod T38-Hex32-T38                                                                                           Flushing hole 9.6 mm
Full carburization

1220

4'

32

1 1/4"

8.60

23H32-T38/T38-1220-23

1830

6'

32

1 1/4"

12.60

23H32-T38/T38-1830-23

2435

8'

32

1 1/4"

16.60

23H32-T38/T38-2435-23

3050

10'

32

1 1/4"

20.80

23H32-T38/T38-3050-23

3660

12'

32

1 1/4"

24.90

23H32-T38/T38-3660-23

Double thread rod T38-Round39-T38
Full carburization

3050

10'

46

1 3/4"

25.70

23R39-T38/2T38-3050-23

3660

12'

46

1 3/4"

30.90

23R39-T38/2T38-3660-23

















































Drill rod T38

 Length

Diameter

Weight
approx kg

HENGLONG  PN

mm

foot

mm

inch

Guide speedrod T38-Round46-T38                                                                                               Flushing hole 17mm
Full carburization

1830

6'

46

1 3/4"

23.50

24R46-T38/57-1830-23

3050

10'

46

1 3/4"

37.20

24R46-T38/57-3050-23

3660

12'

46

1 3/4"

44.00

24R46-T38/57-3660-23

4270

14'

46

1 3/4"

50.90

24R46-T38/57-4270-23

4880

16'

46

1 3/4"

57.70

24R46-T38/57-4880-23

5530

18'

46

1 3/4"

65.00

24R46-T38/57-5530-23

6095

20'

46

1 3/4"

71.30

24R46-T38/57-6095-23

Guide tube
D56 for bits from 64-76mm and D64 for bits from 76-89mm
Full carburization

1220

4'

56

2 13/64"

12.60

24G56-T38/56-1220-23

1525

5'

56

2 13/64"

14.00

24G56-T38/56-1525-23

1830

6'

56

2 13/64"

17.40

24G56-T38/56-1830-23

3050

10'

56

2 13/64"

28.30

24G56-T38/56-3050-23

3660

12'

56

2 13/64"

32.80

24G56-T38/56-3660-23

4920

16'

56

2 13/64"

47.90

24G56-T38/56-4920-23

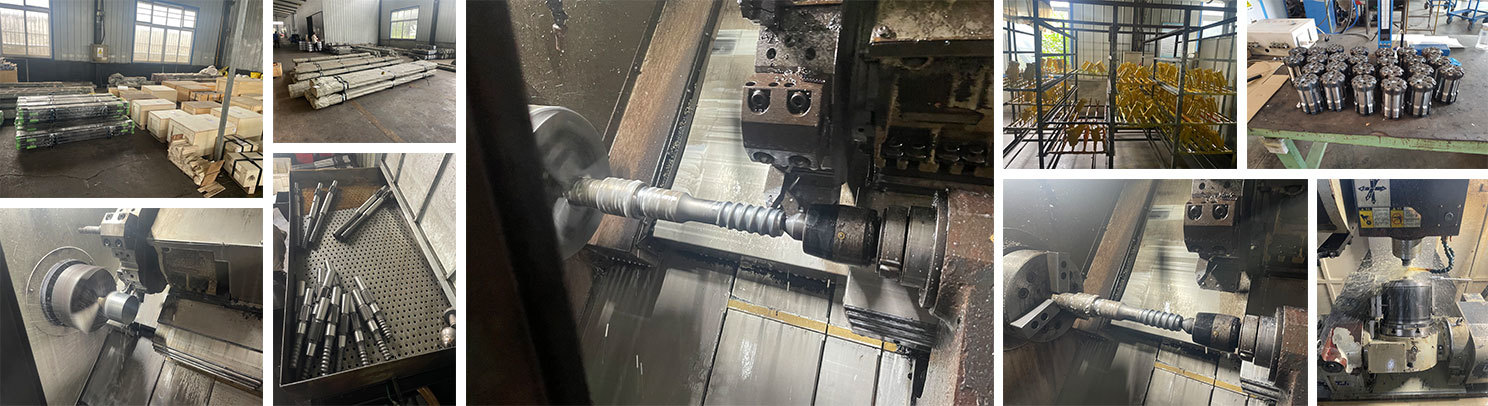

HENGLONG workshop and Process of manufacturing

图片名称

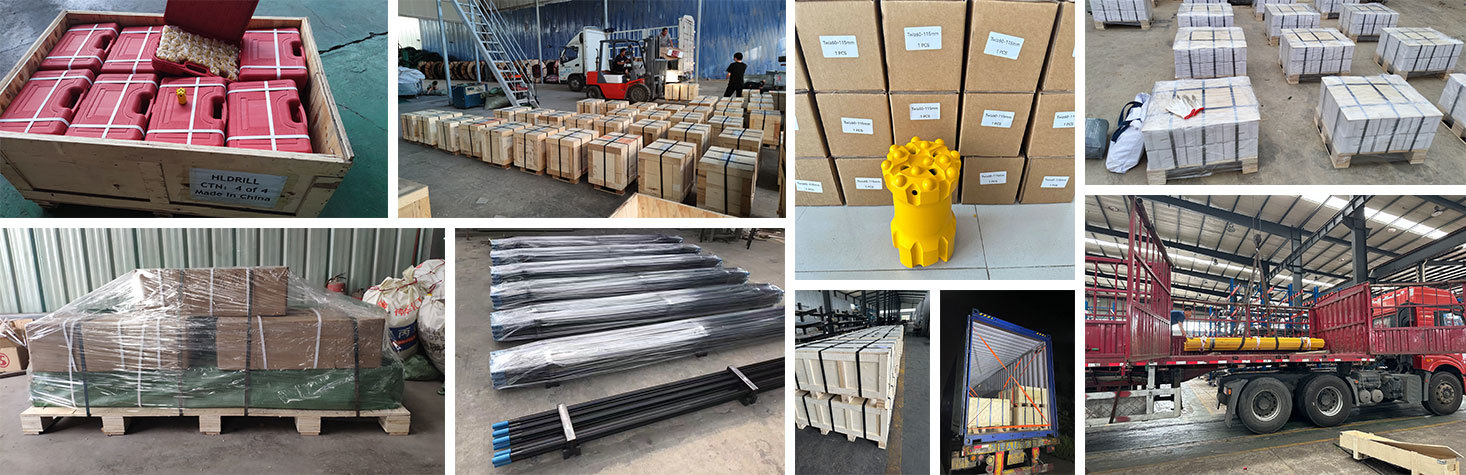

Packing and shipping

图片名称

Factory

图片名称

Customer visit

图片名称
图片名称

Production

图片名称

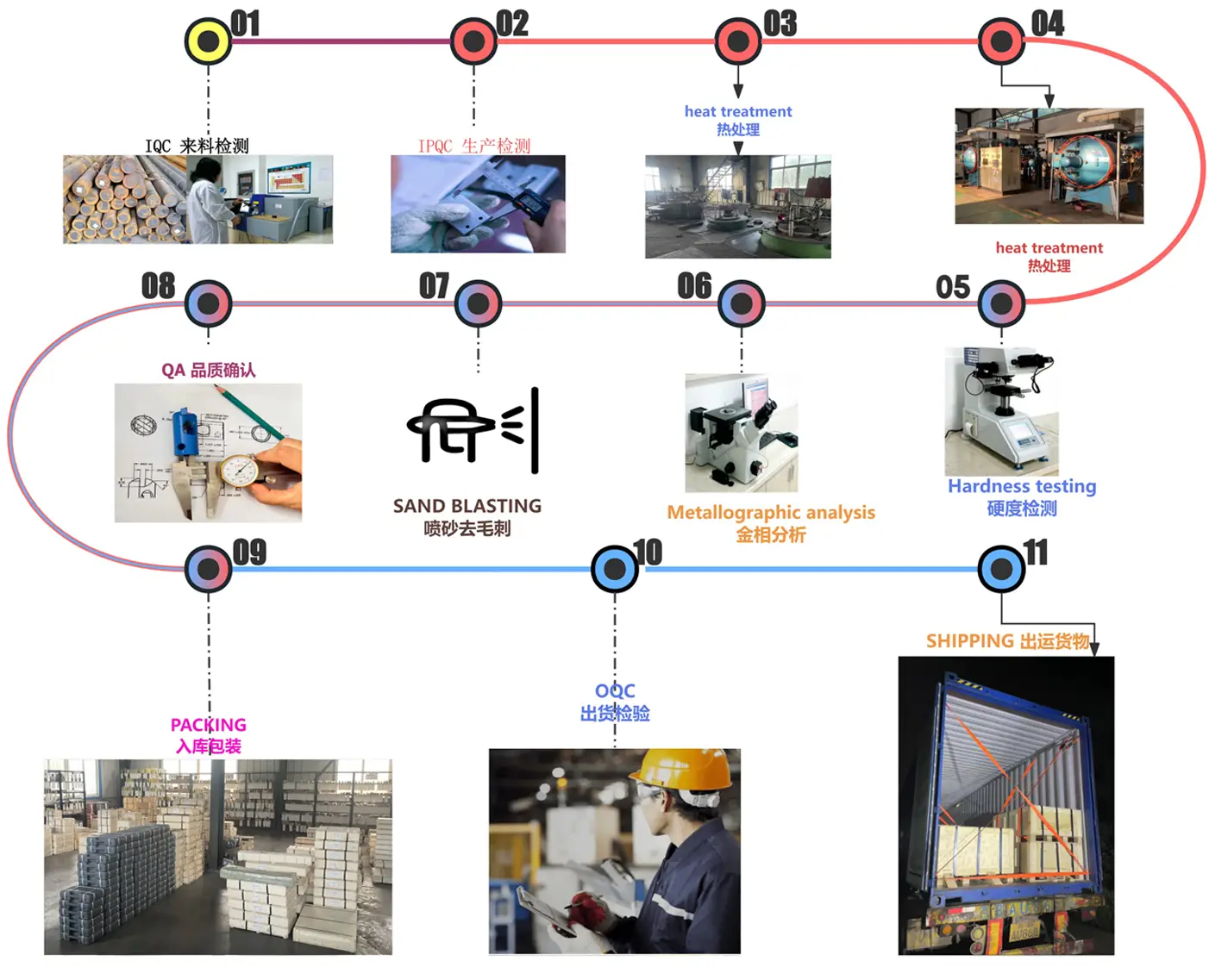

QUALITY INSPECTION PROCESS
