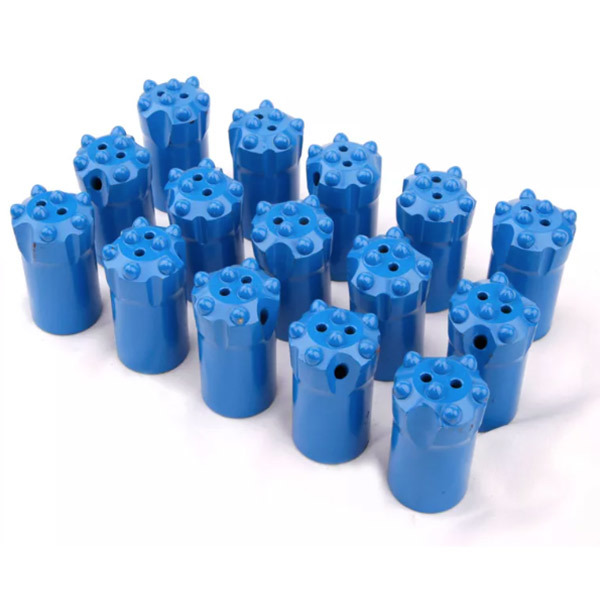

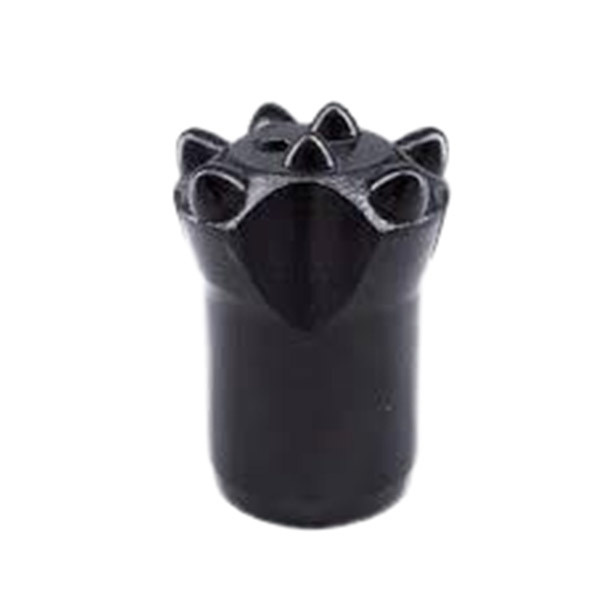

Tapered socket button bit

Product type:tapered socket button bit
Product code： Q7-35-446/22-71
Taper degree : 4°46′
Diameter: 35mm
Gauge Buttons: 7mm×2
Front Buttons: 8mm×5 Carbide Design: Dome, Ballistic
Face Design: Flat
Skirt Design: Standard
Diameter range : 30mm, 32mm, 34mm , 35mm, 36mm ,38mm, 40 mm

Key words：

Tapered Button Bit

Related Products

Message

Product Details

Description

Rock drilling tools factory HENGLONG manufactures tapered socket button bits for underground and dimensional stone driling.
Our tapered button bits have been tried and tested in an array of different rock formations. That's why we are confident theywill exceed even your toughest demands.
All-round drill bit for soft to medium-hard rock. Front and side flushing. Diameters up to 40 mm.Q7-35-446/22-71 tapered socket button bit for Underground Mining Peru，Chlie Using Airleg Pusher Pnenumatic Rock Drill YT24,YT28,YT29A.
Performance
1.tapered socket button bits connect with tapered drill rod perfectly for drilling holes
2.Stable and mature welding technology ensure high quality of bits
3.Accurate dimension of taper degree perfectly matches the rods
4.work reliable and very cost-effective
5.High grade tungsten carbide inserts
6 Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Details Form

Drill bit	Diameter	Gauge	Angle	flushing hole		Weight （kg）	HENGLONG P/N
Drill bit	mm	mm	Angle	front	Side	Weight （kg）	HENGLONG P/N
Long skirt	32	5×7	35°	1	1	0.30	1435-321222-27/57-45-51
	33	5×7	35°	1	1	0.31	1435-331222-27/57-45-51
	33	6×7	40°	2	1	0.31	1435-321222-27/67-45-51
	35	6×7	40°	2	1	0.35	1435-351222-27/67-45-51
	38	5×9	35°	1	1	0.41	1435-381222-27/59-45-51
	41	5×9	35°	1	1	0.42	1435-411222-27/59-45-51
	35	5×9	35°	1	1	0.38	1435-351222-27/59-45-51
	36	5×9	35°	1	1	0.39	1435-361222-27/59-45-51
	38	5×9	35°	1	1	0.41	1435-381222-27/59-45-51
	41	5×9	35°	1	1	0.42	1435-411222-27/59-45-51

HENGLONG workshop and Process of manufacturing

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
