Y6 rock drill

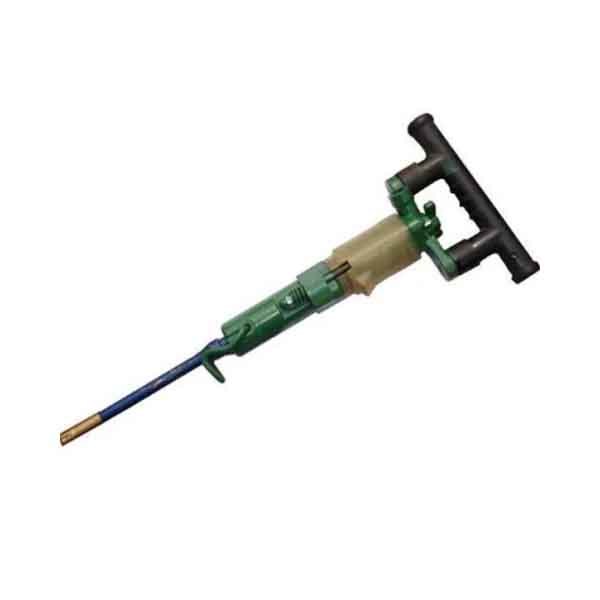

Product name:y-6 rock drill
Weight:6kg
Length: 426mm
Working pressure 0.4-0.63 Mpa
Air hose dia. Φ13 mm Air consumption ≤9.5 * l/s
Impact rate ≥51 * Hz
Shank:15*88mm
Bit size: Φ20 mm

Key words：

Rock Drill

Related Products

Message

Product Details

Description

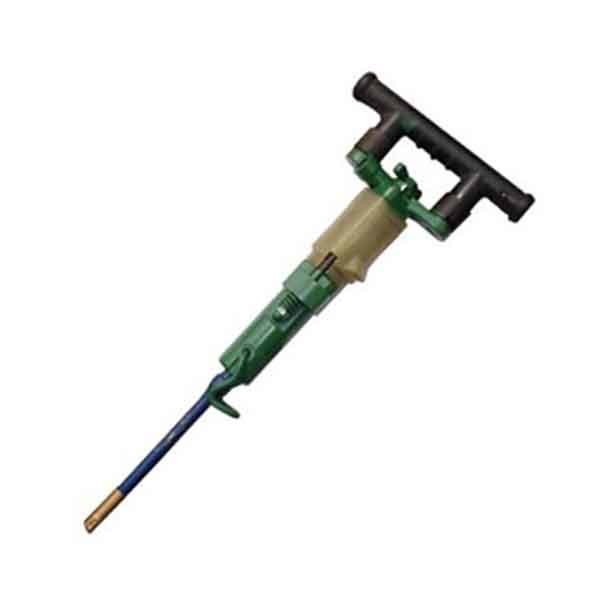

Model Y6 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite. Y6 use small taper drill rod with taper chisel bit, diameter 17-22 mm, and use plug hole integral steel also as for stone working, stone trimming, and 2nd splitting blocks.
Model Y6 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock. It is most suitable for drilling in marble and granite.

Performance

Light weight;convenient operation; high efficiency;fast drilling velocity; low consumption; long life parts etc.

Applications

Specification

Model	Y6	Y8	Y10	Y19A	Y20	Y24	Y26	Y28
Weight(kg)	6	8	10	19	20	24	26	26
Air consumption(L/s)	≤9.5	<9.0	≤9	43	25	≤50	≤47
length (mm)	426	428	458	600	605	604	650	661
shank (mm)	15*88	15*88	15*88	22*108	22*108	22*108	22(25)*108	22*108
Bore Dia (mm)	20	20-30	20-30	30-42	30-42	30-42	30-42	34-42
Drill depth (m)	0.5	0.5	0.5	5	3	5	5	5
Impact rate (Hz)	51	51	≥51	35	34	30	27	≥28
Hose connection(mm)	13			19	16 or19	19	19
Air pressure(Mpa)		0.4-0.63	0.2-0.3			0.4	0.4	0.4

Operation and Maintenance
Take care of proper lubrication (recommended lube oil N46 and N22, Chinese National Standard GB443-84). The drill should not be run without proper lubrication.
Check if the air connector (27) is tightened to prevent it from falling out or shooting out and causing serious injury.
Maintain and repair the drill periodically. If the drill is to be stored for a long time, disassemble and coat it with grease and keep it in a dry place. \

Parts List for Model Y6 Rock Drill:

NO.	Part No.	Description	Qty. (per unit)
1	Y6- 1.01	Cylinder	1
2	Y6- 1.02	Piston	1
3	JB/ZQ3777-86-55-70	Hose clamp	1
4	Y6- 1.07	Outside sleeve	1
5	Y6- 1.05	Valve cover	1
6	GB879 4*24	Elastic pin	2
7	Y6- 1.06	Pin	1
8	Y6- 1.04	Valve	1
9	GB879 5*12	Elastic pin	1
10	Y6- 1.03	Valve chest	1
11	Y6-2.04	Ratchet ring	1
12	Y6-2.03	Spline driver	1
13	Y6-2.02	Rotary sleeve	1
14	Y6-2.05	Ratchet pawl	2
15	Y6-2.01	Front head	1
16	Y6-2.06	Ratchet spring	2
17	Y6-2.07	Steel puller	1
18	Y6-3.03	Throttle valve	1
19	12.5*1.8GB3452. 1-82	O-ring	1
20	Y6-3.08 (Z)	Backhead assembly	1
21	Y6-3.01	Elastic sleeve	2
22	Y20-3. 19	Control lever	1
23	Y6-3.05	Handle	1
24	GB879 4*12	Elastic pin	2
25	16*1.8 GB3452. 1-82	O-ring	1
26	Y6-3.02	Through bolt	2
27	Y6-3.06	Connector	1
28	Y6-3.07	Spring	2
29	GB923 M10	Acorn nut	2

HENGLONG workshop and Process of manufacturing

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.

Rock Drill
