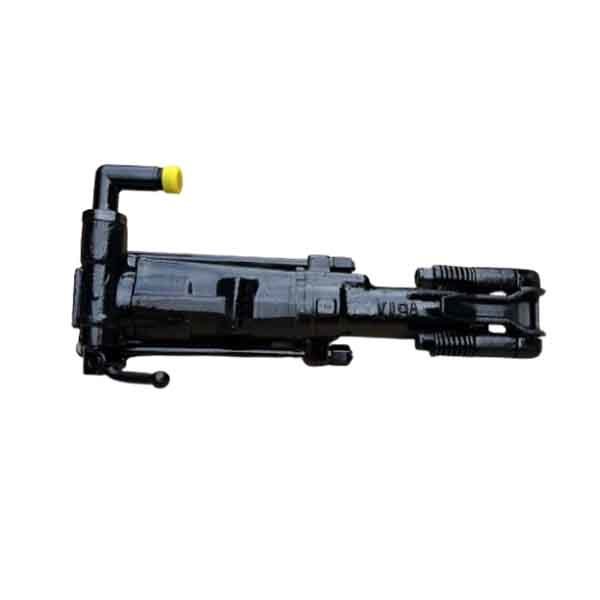

Y19A handheld rock drill

Product name:Y19A handheld rock drill
Weight:19kg
Overall dimensions (L*W*H):600×534×157mm
Suitable maximum drilling depth:5m
Shank size:H22x108mm

Key words：

Rock Drill

Related Products

Message

Product Details

Description

Y19A handheld rock drill is mainly used for drilling, secondary blasting and other work in mines, railway and water conservancy projects. It is designed for both dry and wet rock drilling on hard and medium hard rock, vertically downwards or inclined blast hole. For wet drilling, the water pipe nut must be replaced with the air pipe nut and the water pipe.The rock drill can be equipped with pusher leg FT100 and FY200A lubricator. Y19A type of hand air leg type dual purpose drill is matched with FT100 type air leg, which can be used for dry and wet drilling on medium hard or hard rock. This machine can be used together with a small air compressor of 1.5-2.5 cubic meters/min. Its performance is better than similar products.

Performance

low gas consumption and high efficiency；
an integrated silencer to reduce noise levels；
quick-release chuck mechanism；
With adjustable impact energy and drilling speed；
a well-balanced design and an ergonomic handle, allowing for a firm grip and reducing vibration transmission to the operator's hand and arm；

Applications

The rock drill machine is extensively used in drilling and blasting holes for quarrying, mining, roadway construction, and drilling operation, thus it is indispensable in mine, water conservancy, building materials, energy source, traffic, military industry and geological engineering projects

Specification

Y19A handheld rock drill Technical specifications
Weight	19	Kg
Dimension(L×W×H)	600×534×157	mm
Cylinder diameter	65	mm
Piston stroke	54	mm
Working pressure	4-5	Bar
Air hose inner diameter	19	mm
Max Drilling depth	5	m
Shank Size	H22×108	mm

Related Products

FY200A oil injector
Weight	1.2	Kg
Oil holding capacity	0.2	L
FT100 Air legs
Weight	14	Kg
length	1000	mm

HENGLONG workshop and Process of manufacturing

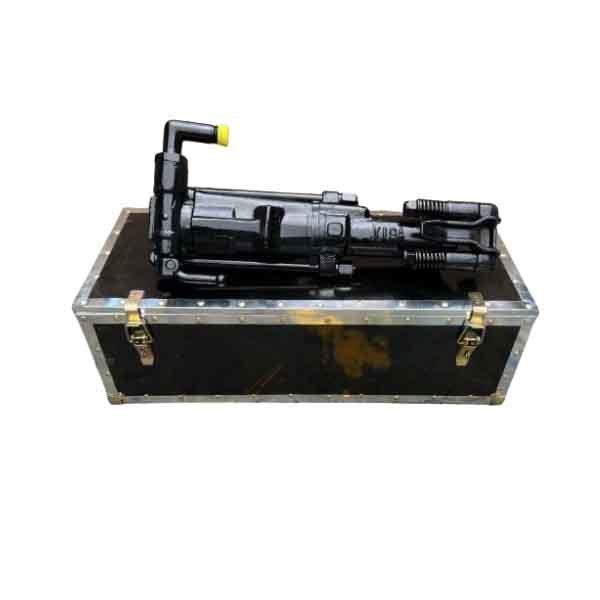

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
