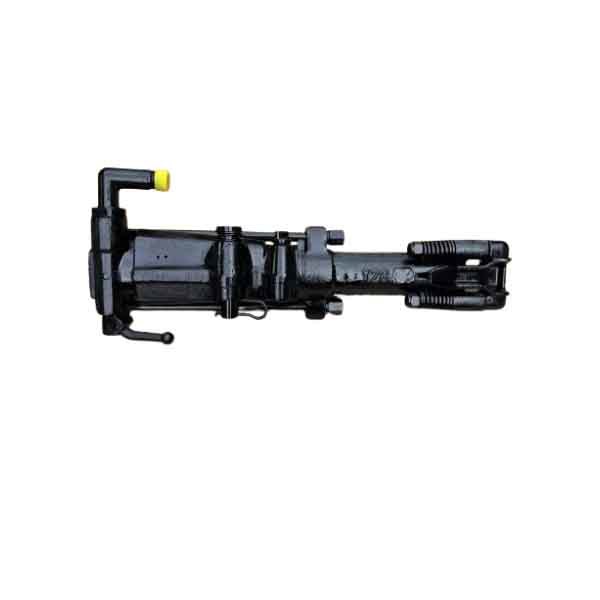

Y26 handheld rock drill

Product name:Y26 hand held rock drill
Weight:26kg
Overall dimensions (L*W*H):650 x 534 x 125mm
Suitable maximum drilling depth:5m
Shank size:H22x108mm,H25x108mm

Key words：

Rock Drill

Related Products

Message

Product Details

Description

Y26 hand held rock drill is specifically designed for rock drilling applications, offering superior drilling capabilities and versatility. Equipped with a pneumatic mechanism, this jack hammer harnesses compressed air to deliver powerful blows that effectively break through solid rock surfaces.
One of the standout features of the Y26 is its exceptional sales performance. This particular model has gained significant popularity and has become widely recognized for its outstanding capabilities and reliability. The market demand for the Y26 hand held rock drill is a testament to its quality and effectiveness in rock drilling operations.

Performance

1.reducing downtime and maintenance costs;
2.Resistance to wear and tear
3.Portability and ease of use
4.Y26 handheld rock drill incorporates advanced vibration control technology, minimizing the vibrations transferred to the operator's hands and arms.

Applications

Y26 hand held rock drill is mainly used for drilling, secondary blasting and other work in mines, railway and water conservancy projects. It is designed for both dry and wet rock drilling on hard and medium hard rock, vertically downwards or inclined blast hole. For wet drilling, the water pipe nut must be replaced with the air pipe nut and the water pipe.

Specification

Y26 hand held rock drill
Weight	26	kg
Dimension (L x W x H)	650 x 534 x 125	mm
Cylinder diameter	65	mm
Piston stroke	70	mm
Working pressure	4–5	bar(e)
Impact energy (at 5.0 bar (e))	≥48	J
Impact energy (at 4.0 bar (e))	≥30	J
Air consumption (at 5.0 bar (e))	≤50	l/s
Air consumption (at 4.0 bar (e))	≤47	l/s
Impact frequency (at 5.0 bar (e))	≥27	Hz
Impact frequency (at 4.0 bar (e))	≥23	Hz
Torque (at 5.0 bar (e))	≥14	Nm
Torque (at 4.0 bar (e))	≥11	Nm
Noise level	≤125	dB(A)
Water pressure	working pressure -1	bar(e)
Air hose inner diameter	19	mm
Water hose inner diameter	13	mm
Drilling diameter	34–42	mm
Max drilling depth	5	m
Working temperature	-30 to +50	ºC
Shank size	H22x108±1/H25x108	mm

HENGLONG workshop and Process of manufacturing

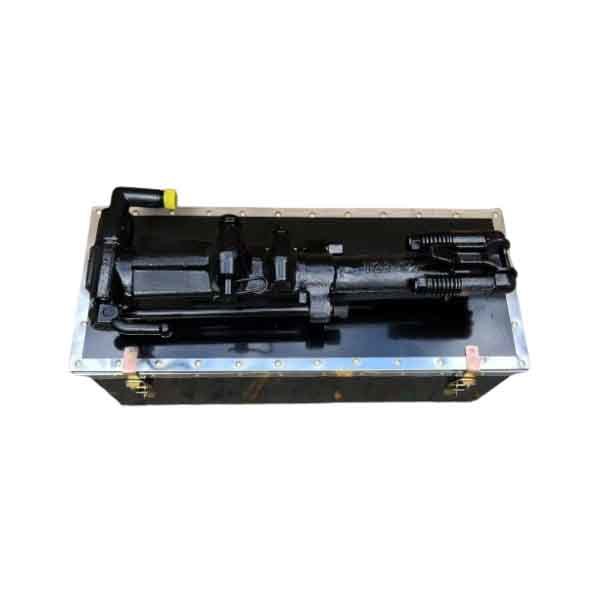

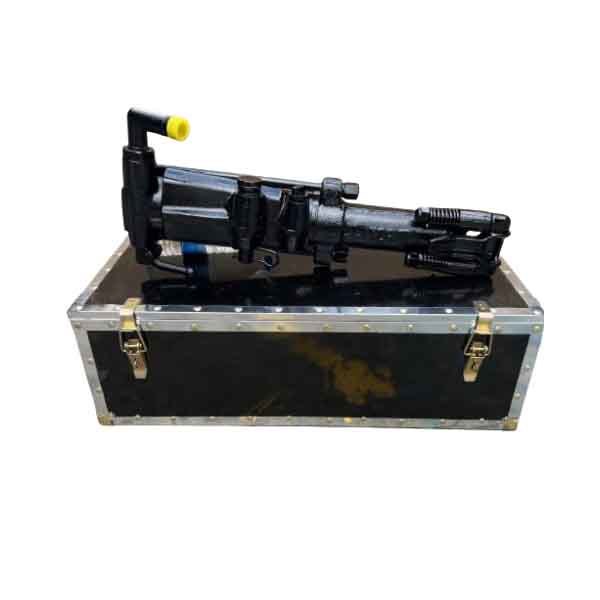

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
