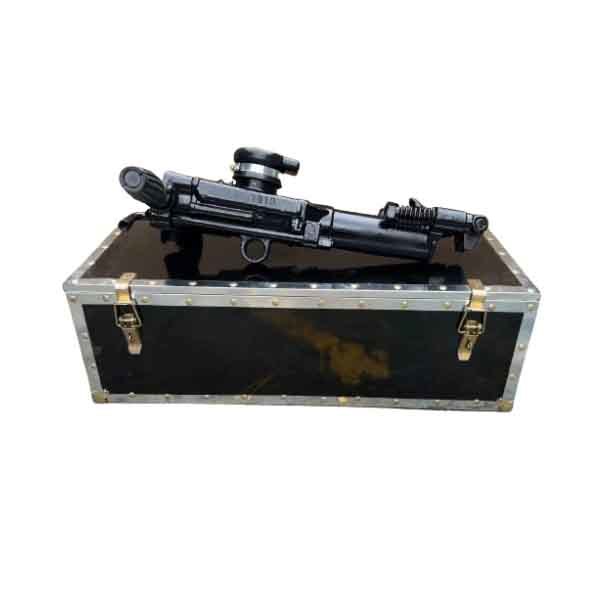

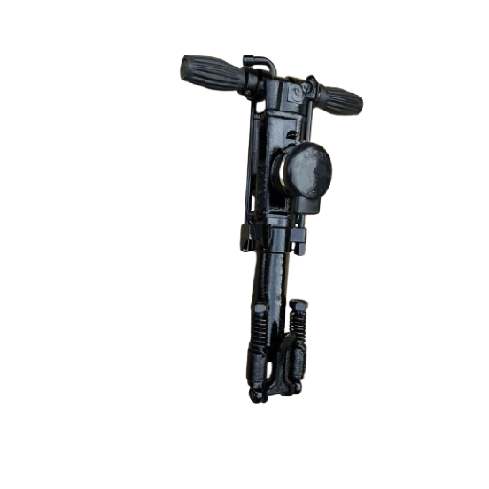

YO18 rock drill

Product name:YO18 rock drill
Weight:18kg
Length:550mm
Shank size:H22x108mm

Key words：

Rock Drill

Related Products

Message

Product Details

Description

YO18 rock drill for drilling rock blast holes and other rock drilling work in quarries, small mines and other engineering construction. Suitable for medium hardness and drilling below horizontal and vertically inclined blast holes on hard rock; Equipped with FT-100 air legs, it is possible to drill holes in various directions and angles.The diameter of the drilling hole is 34-42 mm, the depth of the hole is 1.5~2 meters, and the maximum depth can reach 5 meters.

Performance

The flanged control vavle is adopted,so it has many advantages such as reasonable in structure,quick in starting ,light in weight ,fast drilling speed,lower air comsumption,smaller vibration,easier operation,lower trouble rate,long-life parts,good economic effect,ect.it is also equipped with a rubber damping handle,so is eary to operate and provide the operators with necessary working protection.

Applications

YO18 rock drill is mainly used in samll quarries,small coal mines, gold mines and limestone mines for drilling,blasting for constructing roads in mountain areas,also in the capital construction for water conservancy works.it is suitable for drilling works in large mines for boulder blasting and other projects as well. Also adapt to rocky lands.

Specification

YO18 rock drill Technical specifications
Weight	18	Kg
Length	550	mm
Cylinder diameter	58	mm
Piston stroke	45	mm
Working air pressure	0.4~0.5	MPa
Working water pressure	0.2~0.3	MPa
Air hose inner diameter	19	mm
Water pipe inner diameter	8	mm
Shank Size	22×108	mm

Related Products

FY-150 oil injector
Weight	≤0.9	Kg
Oil holding capacity	0.15	L
FS-100 Water injector
Weight	50	Kg
Water injection pressure	0.3	MPa
Water injection	100	Kg
FT-100 Air legs
Weight	14	Kg
thrust	980	N
Length of propulsion	955	mm

HENGLONG workshop and Process of manufacturing

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
