YSP45 upward rock drill

Product name:YSP45 upward rock drill
Air consumption:<47 L/S
Drilling depth:6m
Weight:45kg
Shank size:22*108mm

Key words：

Rock Drill

Related Products

Message

Product Details

Description

The YSP45 upward rock drill also known as YSP45 stoper rock drill .It's robust design for tough working condition. It has high inpaxct frequency .YSP45 upward rock drill designed for operations in medium-hard and hard rock in bore raising.Able to drill up-holes and holes 60 degree 90 degree the horizontal plane .It can also be used for bolt setting.YSP45 upward rock drill is an upward type high frequency drill machine. It used in mining, shaft sinking and excavate the patio drilling operations, drilling in ground into 60 degrees to 90 degrees upward direction of the hole, It can also be used to anchor installation.

Performance

（1）High efficiency
（2）Lower noisy
（3）Easy to clean
（4）widly used in quarry

Applications

YSP45 stoper rock Drilling machine , is powerful and impact rock drill rigs for small -scale underground mining , also is robust design for tough working condition. It has high impact frequency and is mainly used for small-scale production drilling underground mining , raise driving and bolting.

Specification

YSP45 upward rock drill
Weight	44			kg
Physical size(lengthwidehigh)	1420390160			mm
Cylinder Diameter	95			mm
Piston Structure Stroke	47			mm
Air leg Propulsion Stroke	750			mm
Air leg Cylinder Bore	74			mm
Working Pressure	0.63	0.5	0.4	Mpa
Impact Energy	≥73.5	≥70	≥57	J
Drilling air Consumption	≤113.3	≤83	≤80	L/s
Drilling Impact Frequency	≥46	≥45	≥42	Hz
Torque	≥21	≥18	≥15	N.m
Use Hydraulic	0.3			Mpa
Tracheal Diameter	25			mm
Pipe Diameter	13			mm
Appropriate drilling Hole Dia .	34~42			mm
Suitable for max hole depth	6			m
Working Temperature	-30~50			°C
Bit Shank Specification	H22*108 ± 1			mm
FY500A Olier
Weight	2.5	kg
Oil Capacity	0.52	L

HENGLONG workshop and Process of manufacturing

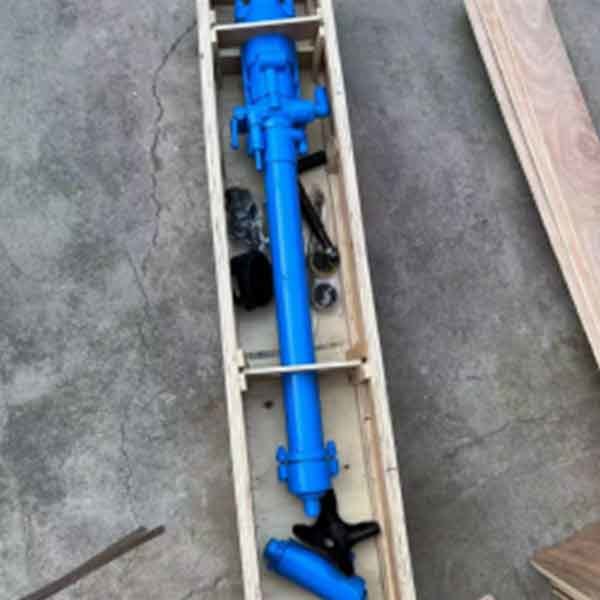

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
