self drilling anchor centralizer

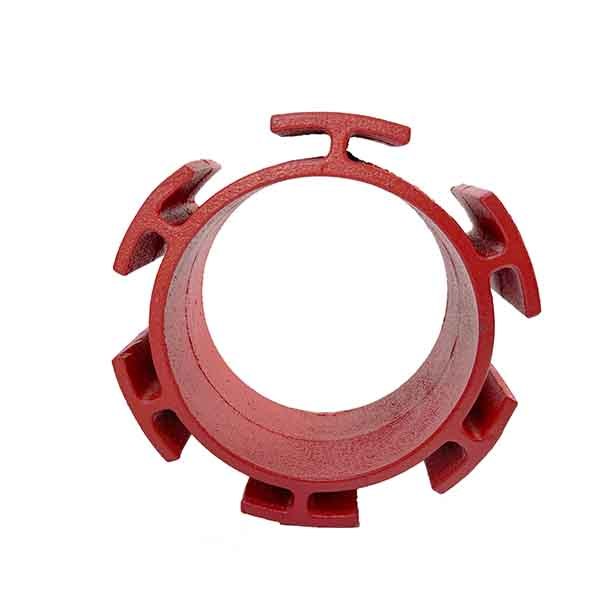

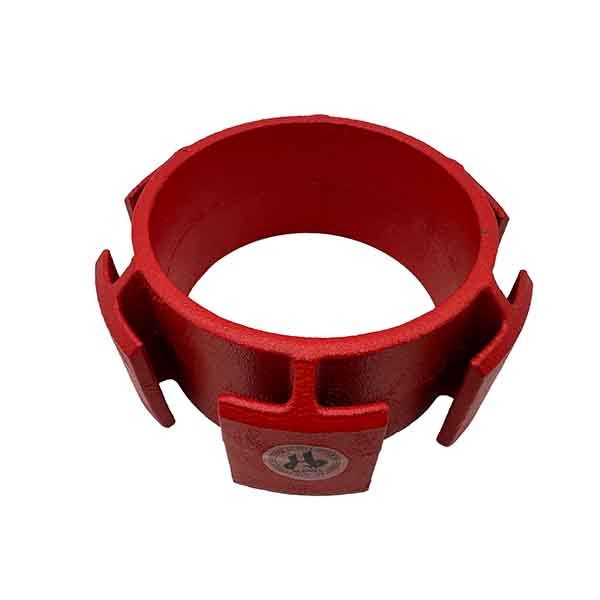

Product name:self drilling anchor centralizer
Outer Dia.:150mm
Inner Dia.:108mm
Length:60mm
Weight:1.62kg
Steel grade:CK45
Package:plywood

Key words：

Rock Bolt

Related Products

Message

Product Details

Description

Centralizers are used to centre the hollow bars within the borehole and to ensure the correct grout cover of the load-bearing element according to the relevant standards and as specified in
the approvals.

Application

Slope stabilization
Self-Drilling Anchors are very suitable for weathered or un-consolidated rock stabilization. This technique is a more superior form of stabilization because the SDA technique is a relatively easy and fast method of installation compared to the outdated methods.
Foundations with micro piles
SDAs can be used like monopoles and micropile types because these are drilled piles composed of steel reinforcement with injected grout. These anchors are used like micropile type to stabilize the ground and related foundation problems. These anchors are suitable for tension and compression loads at varying ground conditions.
Tunneling
Self-drilling anchors are most suitable for the stabilization of tunnel strengthening works. Mostly for the soft rock and overburden soil conditions, the SDA’s are apt for rooftop protection.

Specification

No.	Outer Dia. mm	Length mm	inner Dia. mm	Steel Type	Weight kg
1	68	35	35	CK45	0.35
2	70	35	40		0.36
3	85	40	52		0.52
4	95	40	67		0.53
5	125	40	67		0.86
6	140	50	80		1.25
7	170	60	112		2.15
8	65	35	35		0.30
9	70	35	40		0.36
10	85	40	53		0.52
11	103	60	150		1.4
12	110	50	80		0.75
13	140	60	112		1.25
14	150	60	108		1.62

HENGLONG workshop and Process of manufacturing

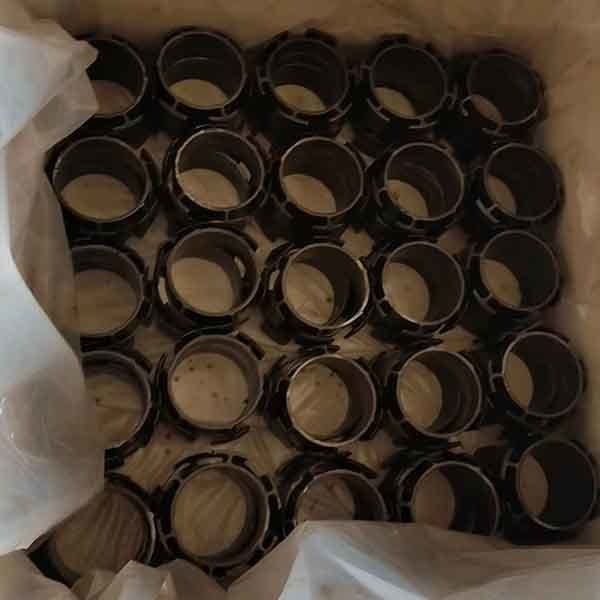

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
