self drilling anchor nut

Product name:self drilling anchor nut
Thread:T108
Dia.:125mm
Length:80mm
Weight:3.1kg
Material:42CrMo
Package:plywood

Key words：

Rock Bolt

Related Products

Message

Product Details

Description

The hexagonal nuts are made of high strength steel with properly made by all edges to satisfy the demands of anchor specifications and other operations.

Application

Slope stabilization
Self-Drilling Anchors are very suitable for weathered or un-consolidated rock stabilization. This technique is a more superior form of stabilization because the SDA technique is a relatively easy and fast method of installation compared to the outdated methods.
Foundations with micro piles
SDAs can be used like monopoles and micropile types because these are drilled piles composed of steel reinforcement with injected grout. These anchors are used like micropile type to stabilize the ground and related foundation problems. These anchors are suitable for tension and compression loads at varying ground conditions.
Tunneling
Self-drilling anchors are most suitable for the stabilization of tunnel strengthening works. Mostly for the soft rock and overburden soil conditions, the SDA’s are apt for rooftop protection.

Specification

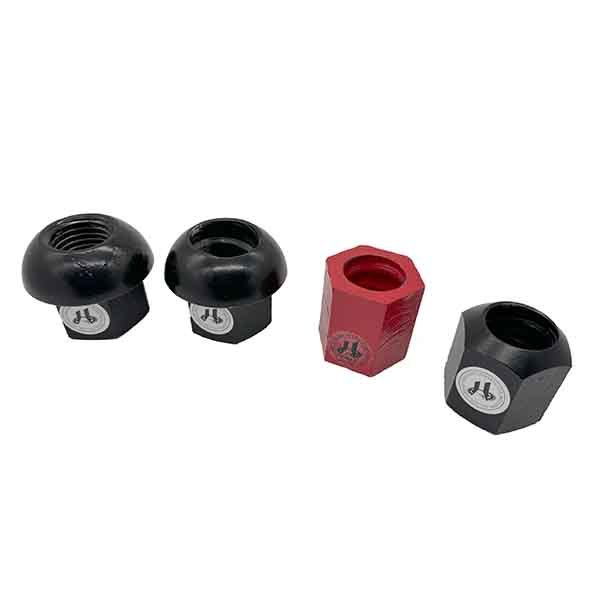

nut （Hex/Dome）
Description	R32	R38	R51	T51	T76	T103	T108	Unit
Key size	46	50	75	100	100	125	125	mm
length	45	60	70	80	80	80	80	mm
Weight	0.4	0.5	1.6	2.7	2.4	2.9	3.1	kg

HENGLONG workshop and Process of manufacturing

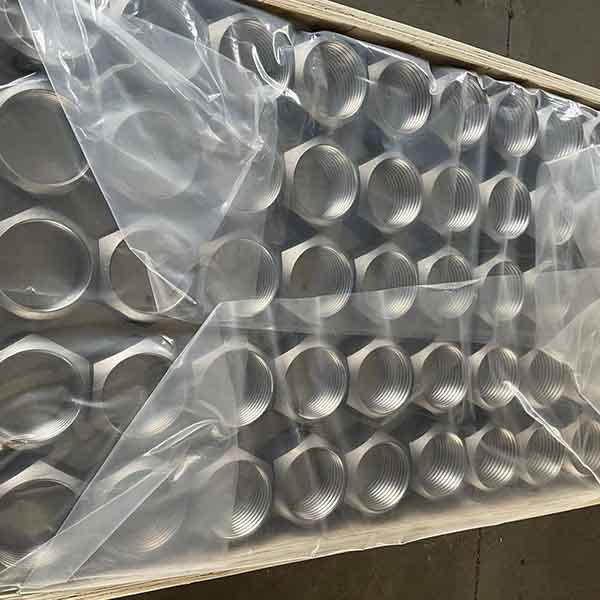

Packing and shipping

Factory

Customer visit

Production

QUALITY INSPECTION PROCESS

Product quality is one of the core links in the development and growth of Yanggu Henglong Engineering Co., Ltd. Our company has strict internal and external inspection processes to ensure the quality of our products. Our inspection process for our products is as follows.
